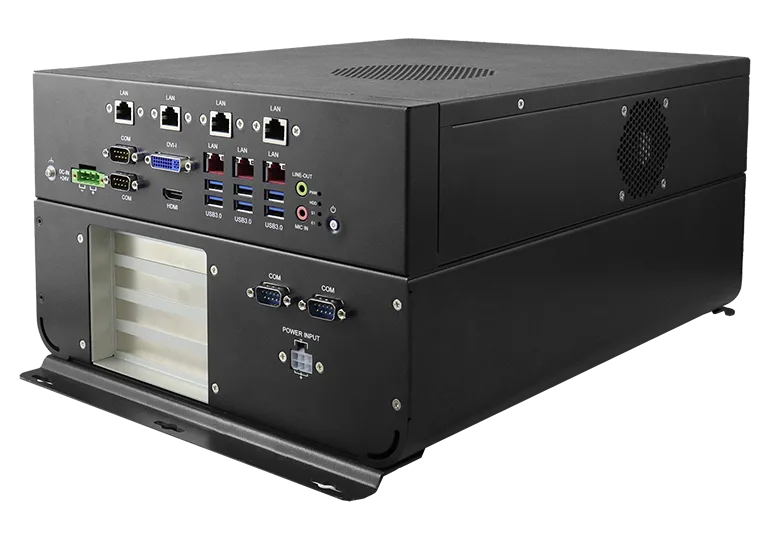

MAF801
Edge AI Computer Powered by 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3/Celeron® Processors & PCIe GPU Cards Support
Edge AI Computer Powered by 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3/Celeron® Processors & PCIe GPU Cards Support. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBA801 with Intel® R680E PCH |
|---|---|
| CPU Type | 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 desktop processors (35W/65W TDP) |
| System Speed | Up to 6GHz |
| Memory | 2x DDR5-5600 SO-DIMM, Max. 64GB |
| AI Inference Computing Power | By CPU and PCIe card performance |
| Front Panel External I/O | 1x HDMI, 1x DVI-I6x USB 3.x3x RJ45 for Gigabit LAN2x RS-232/422/485 COM ports 2x RS-232 COM ports1x Audio connector for Line out Power / HDD LED, power button1x DC-In power connector for system power |
| Rear Panel External I/O | N/A |
| Expansion Slot | 1x PCI-Express (x16)1x PCI-Express (x4)2x M.2 2280 B-Key + M-Key |
| Storage | 2x 2.5'' HDD/SSD (external-access)1x M.2 2080 M-Key (NVMe) |
| Power Requirement | 24V DC for System Power Input12V DC for Additional Power |
| Power Supply | N/A |
| Construction | Aluminum & Steel |
| Chassis Color | Silver & Black |
| Mounting | N/A |
| Weight | TBD |
| Dimensions | MAF801-F1: 284mm (W) x 362mm (D) x 80mm (H)MAF801-F3: 284mm (W) x 362mm (D) x 178mm (H) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-operating: 1.0 grms / 5~500Hz / random operationOperating:0.25 grms / 5~500Hz / random operation |
| Shock | Operating: 20 g / 11 msNon-operating: 40 g / 11 ms |
| Certification | CE / FCC Class-B (TBD) |
| Operating System | Windows 11, Ubuntu 22.04 |
I/O — Rear panel
Front access
Where the MAF801 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
