ISR201

Name: ISR201
Brand: IBASE Technology
SKU: ISR201
Availability: InStock

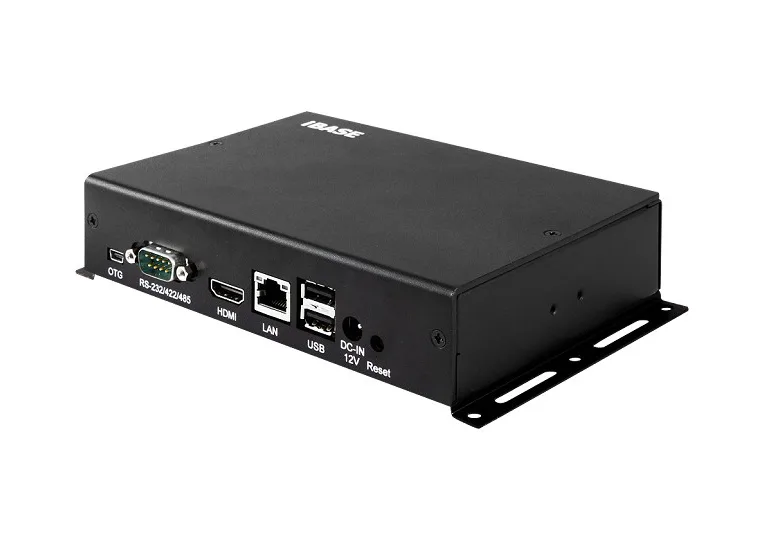

Ruggedized Edge Computer with NXP ARM® Cortex-A9 i.MX 6Dual Processor

Ruggedized Edge Computer with NXP ARM® Cortex-A9 i.MX 6Dual Processor. Local warranty support and engineering customization available on request.

CPU

NXP Cortex™-A9 i.MX 6Dual processor

MEMORY

1GB DDR3 on board

STORAGE

4GB eMMC on board (optional 8/16/32/64 GB)

DISPLAY

1x HDMI 1.4 (FHD)

Edge ComputerRISC based Edge Computing…

P/N # ISR201

20 ROWS

System Mainboard	IBR117 3.5-inch SBC
Processor	NXP Cortex™-A9 i.MX 6Dual processor
System Memory	1GB DDR3 on board
LAN Connector	1x RJ45 GbE LAN
Display	1x HDMI 1.4 (FHD)
Front I/O	1x HDMI Type-A, up to FHD2x USB 2.0 Type-A1x RJ45 GbE LAN1x RS232 /422/485 (DB9)1x Mini-USB OTG1x 12V DC-in jack1x Reset button
Rear I/O	2x RS232 (DB9)8x GPIO2x Antenna hole (RP SMA jack)3x LED indicators
Side I/O	1x SD socket (UHS-I SDR-104, 104MB/s max.)
Expansion Slots	1x M.2 E-Key (2230) w/ USB, SDIO, UART, PCI-E1x Mini PCI-E (USB only) w/ SIM socket
Storage	4GB eMMC on board (optional 8/16/32/64 GB)
Watchdog	256 levels, 0~128 seconds
Fanless	Yes
Construction	SGCC
Chassis Color	Black
Mounting	VESA 75 / 100, DIN rail, wall mount
Dimensions (WxDxH )	172mm x 162mm x 36 mm ( 6.78" x 6.38" x 1.42")
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Relative Humidity	10%~90% (non-condensing)
OS Support	Yocto v2.1Android 6.0.1
Certification	CE/ FCC Class-B
