IBT999
10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® Q470E PCH Mini-ITX Motherboard
10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® Q470E PCH Mini-ITX Motherboard. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | FcLGA1200 |
|---|---|
| CPU | 10th Gen Intel® Core™ processors, up to 4.7GHz |
| PCH | Intel Q470E PCH |
| Memory Types | 2x DDR4-21933/2666@1.2v, Max. 64GB · 260-pin SO-DIMM (supports ECC by CPU SKU) |
| BIOS | 256M AMI BIOS 8 |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Expansion Slots | 1x M.2 (E-key@2230) CNVi 1x M.2 (M-key@2280) NVMe 1x PCI-E (x16) |
| Graphics Controller | Intel® UHD Graphics integrated GD Gfx Supports, HDMI (1.4), DVI-D and eDP/24-bit Dual channel LVDS |
| Ethernet | 1st LAN: Intel® I219LM 2nd LAN: Intel® I211AT |
| I/O Chip | Fintek F81964D-I: COM1~COM2(RS232) (2x5 pin-header) Digital I/O (4 in/4 out) (2x5 pin-header) |
| USB | 10x USB 3.x (read panel) 6x USB 2.x (pin-header 2.0mm) |
| Serial ATA | 4x SATAIII |
| Audio | built-in PCH HD audio + Realtek ALC888S codec (Audio 5.1) |
| Management | iAMT (14.0) |
| TPM | TPM(2.0) |
| Dimensions (L X W) | 170mm x 170mm |
| Advanced features | 1. LAN Wakeup 2. SATA III Raid 0/1 3. EuP/ErP (Via Super I/O) 4. Support DCI 5. RTC battery with battery holder 6. AT mode by jumper setting 7. CE (EN55032:2012); FCC Class B (0 ohm co-lay) |
| Power Input | ATX standard 24-pin type & 8 pin type (working with 20 and 4) |
| Power Consumption | Intel® Core™ i5-10500E, 3.00GHz, with 2x 4GB DDR4 2133 +12V: 6.08A +5V: 1.19A +5Vsb: 0.11A +3.3V: 0.90A |
| Operating Temperature | 0°C ~ 60°C (32°F~140°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
Features
| Feature 1 | 10th Gen Intel® Core™ / Pentium® processors, up to 4.7GHz |
|---|---|
| Feature 2 | 2x DDR4 SO-DIMM, Max. 64GB, ECC compatible |
| Feature 3 | Intel® UHD Processor integrated graphics (3x Channels) |
| Feature 4 | Dual Intel® Gigabit LAN |
| Feature 5 | 16x USB channels,2x COM, 4x SATAIII |
| Feature 6 | 2x M.2(E-key, M-Key), 1x PCIe 16x |
| Feature 7 | Watchdog timer, iAMT (14.0), TPM (2.0), Digital I/O |
Ordering Information
| IBT999 | - LGA1200 Q470E Mini-ITX motherboard w/ DVI-D, HDMI, LVDS, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0) |
|---|

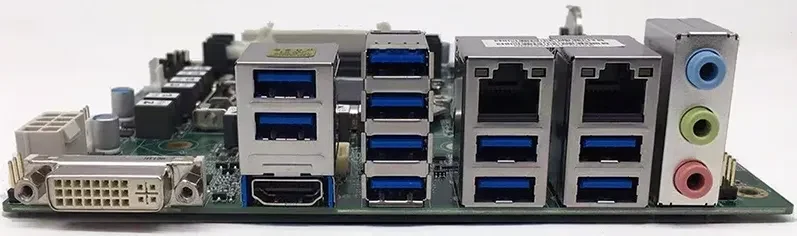

I/O — Rear panel
Front access
Where the IBT999 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
