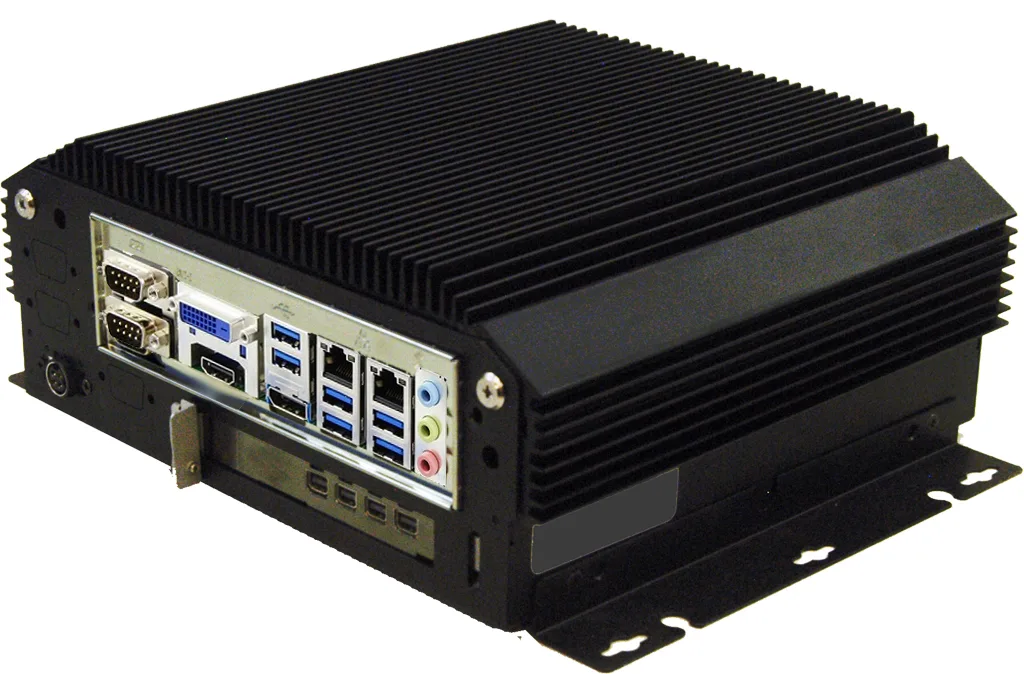

IBT568995
Mini-ITX Fanless System with Intel 8th Gen. Processor Xeon® E/ Core™ i7/ i5/ i3
Mini-ITX Fanless System with Intel 8th Gen. Processor Xeon® E/ Core™ i7/ i5/ i3. Local warranty support and engineering customization available on request.
Specifications
| CPU | 8th Gen. Intel® Core i7 or i5 processors |
|---|---|
| Socket | FC-BGA1440 for 8th Gen Intel® processors |
| Memory | 2x DDR4-2666 SO-DIMM socket, Max. 32GB (support ECC by CPU SKUs) |
| Chipset | Intel® CM246 / QM370 PCH |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| VGA Memory | Shared memory |
| SSD | mSATA, M.2 |
| LAN | Dual Intel® Gigabit i21x LAN |
| LAN Connector | 2x RJ-45 on board |
| H/W Monitor | Yes |
| Expansion Slots | 1x PCI-E(16x)* * 240 x 230 x 99 (mm), 9.45 x 9.05 x 3.9 (in) · 1 x M.2 (M-key, type 2280, NVMe) · 1 x M.2 (E-Key, type 2230, CNVi) |
| I/O Chipset | Fintek F81964D-I 2x RS232/422/485, 2x RS232 |
| USB | 6x USB3.1 onboard · 4x USB 2.0 via pin header |
| Serial ATA | 2x SATA III |
| Audio | Intel® [CNL PCH-H integrated] built-in High Definition |
| Audio | controller + Realtek ALC888S w/ 7.1 channels |
| Others | Digital I/O (4-in/4-out); TPM 2.0, iSMART, EuP/ErP, RAID, · iAMT(11.6), ATX |
| DC to ATX Power | Internal 215W to ATX fanless Power |
| Adapter | 120W; Option: 150W Adapter |
| DC or Car PC Power supply | Option: DC 12V (Car PC) source (96 Watt) · DC 24v (Car PC) source (108 Watt) |
| Operation Temperature | -20°C ~ 55°C |
| Dimension (W x H x D) | Standard: 240 x 230 x 89 (mm), 9.45 x 9.05 x 3.5 (in) |
| Weight | 7.5LB (avrg) |
| Max. Power Requirement | Intel Core i5-8400H, 2.50GHz, w/ 2 x 16GB DDR4-2133 |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
Features
| Feature 1 | Intel 8th Generation Intel® Xeon Core i7/i5 |
|---|---|
| Feature 2 | with Intel® X27 and CM246 Chipset |
| Feature 3 | 2x DDR4-2666 SO-DIMM socket, Max. 32GB |
| Feature 4 | Support ECC memory depend on cpu |
| Feature 5 | Dual Intel Gigabit LAN |
| Feature 6 | PCI Express x16 Slot |
| Feature 7 | 4-port SATAII 6Gb/s |
| Feature 8 | DP, HDMI and DVI-D video Outputs multi-channel |
| Feature 9 | Built-in Watchdog Timer Technology |
I/O — Rear panel
Front access
Where the IBT568995 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
