IB-BOX-N3350 Fanless, Ultra small Embedded System with Intel Apollo Lake N3350 Dual Core
IB-BOX-N3350 Fanless, Ultra small Embedded System with Intel Apollo Lake N3350 Dual Core. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel Apollo Lake processor N3350 |
|---|---|
| Chipset | Intel SoC integrated |
| System Memory | DDR3L-1600/1866 MHz, 1 x SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232 |
| USB | 2 x USB 3.0, 6 x USB 2.0 |
| Ethernet | 2 x RJ-45, Realtek RTL8111H Giga LAN |
| PoE | No |
| Display | 1 x VGA (Up to 1920 x 1200 @ 60Hz),1 x HDMI (Up to 3840 x 2160 @ 60Hz),1 x LVDS (Up to 1920 x 1200 @ 60Hz) |
| Digital I/O | 4 x Input / 4 x Output programmable |
| Audio | Realtek 5.1 channel HDA Codec, with MIC/Line-out (Internal connector) |
| Storage | 1 x SATA 3.0 |
| Expansion | 2 x Mini-PCIe (1 x mSATA, 1 x Wifi/3G/4G supported) |
| Others | 1 x 8-bit GPIO, 1 x I2C, 1 x SMBUS 1 x Speaker header 1 x DC 9 - 36V 4-pin ATX Power Input Connector |
| Power Supply | 1 x DC 9-36V power input connector with lock |
| Optional | Phoenix contact connector |
| Watchdog Timer | 1 - 255 steps by software program |
| Construction | - |
| Dimensions | 182 x 115 x 55 mm |
| Weight | 1.1 kg |
| Certifications | CE, FCC |
| EOS Support | - |
| Software Support | Win7, Win8, Win10 IoT, Linux |

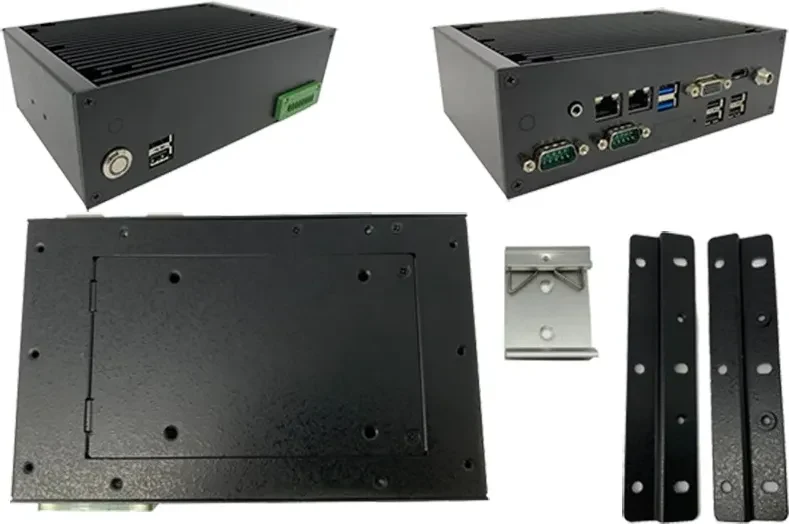

| Mounting | VESA mount, DIN Rail with DIN Rail bracket (Optional), Wall Mount with Wall Mount bracket (Optional) |
| Operating Temperature | 0°C to +60°C |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Vibration | - |
| Shock | - |
Features
| Feature 1 | Intel Apollo Lake N3350 |
|---|---|
| Feature 2 | DiskSize 3.5 inch small Computer |
| Feature 3 | Mount Din-Rail or Wallmount |
| Feature 4 | Dual Lan, Dual Serial, Dual video output, 6xUSB |
| Feature 5 | Power Supply source 9~36VDC input |
Ordering Information
| IB-BOX-n3350 | - Fanless Small 3.5 inch Computer, Dual Lan, Dual Serial, VGA / HDMI, 6xUSB, 9-36VDC power input |
|---|---|
| IB-BOX-WMRAIL | - WallMount bracket |
| IB-BOX-DM | - Din-Rail braket |
| Specify | - Memory and Storage requirement |

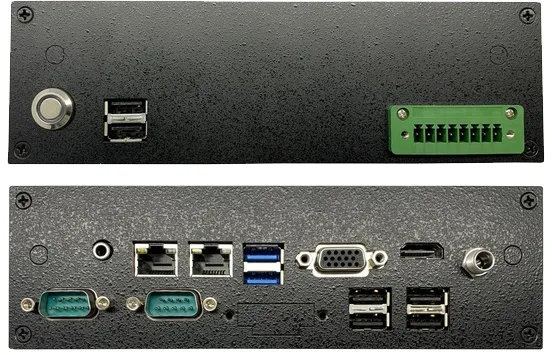

I/O — Rear panel
Front access
Where the IBBOXN3350 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
