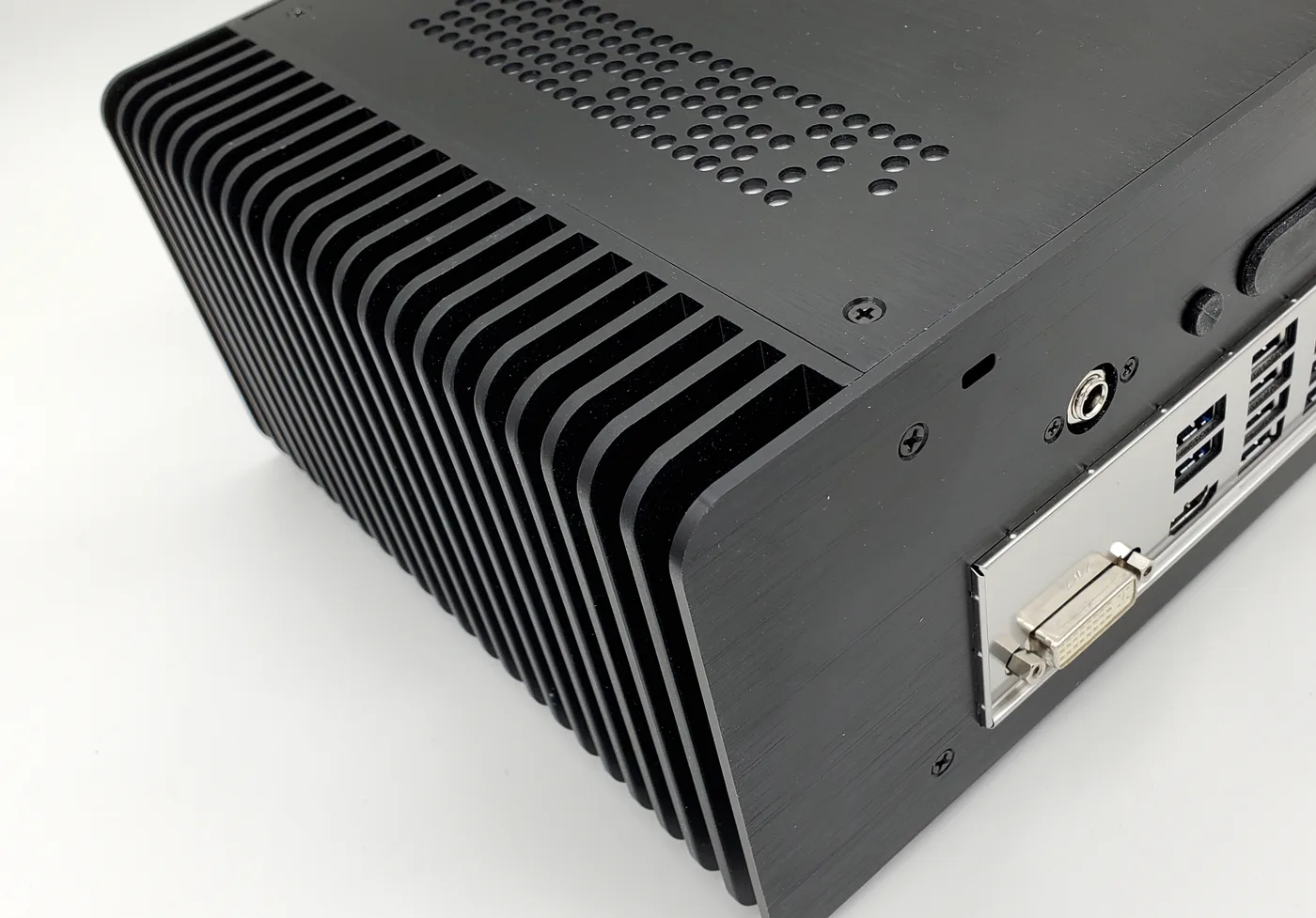

IBBOX999
SYS-IBBOX-999 - Fanless computer 10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor
SYS-IBBOX-999 - Fanless computer 10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor. Local warranty support and engineering customization available on request.
Specifications
| CPU Type | Intel Core Processors 10th Gen Desktop i7-10700TE* |
|---|---|
| System Speed | Up to 4.4 GHz (i.e. i7-10700te) Up to 16MB cache, (45.8 GB/s) |
| Memory | So-Dimm DDR4, 16GB, (Max. 128GB) |
| Storage M.2 SSD NVME PCI 4.0 128~500GB (Option | 2x 2.5 Inch SATA) |
| Expansions | 1x M.2(E-key@2230), supports CNVi, 1x M.2(M-key@2280), supports NVMe |
| Mounting | 280x207x110 mm (11 x 8.14 x 4.33 inch) WxDxH |
| Dimensions | Desktop/Shelf and Bracket mount*** |
| Operating Temperature | 0°C ~ 60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Regulation | CE/ FCC ClassA/ LVD |
Features
| Feature 1 | 10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor |
|---|---|
| Feature 2 | 16M Cache, up to 4.40 GHz |
| Feature 3 | 16GB DDR4 (base) |
| Feature 4 | Intel Processor integrated graphics UHD 630 4K or add-on |
| Feature 5 | Video output DVI-D, HDMI, DisplayPort |
| Feature 6 | Dual Intel Gigabit LAN |
| Feature 7 | 10x USB3, 6x USB2, 2x COM, Audio Ac97 |
| Feature 8 | Remote Management iAMT (14.0), TPM (2.0) |
| Feature 9 | Hardware programmable Watchdog timer |
| Feature 10 | Energy Saver (EuP/ErP) |
| Feature 11 | CE, FCC, RoHS |
| Feature 12 | **Proposed configuration with IBT999 SBC Any Mini-ITX, Macro-ATX or ATX certified can work. |
Ordering Information
| SYS-IBBOX-999-i7 | Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10700TE, External PSU 100W |
|---|---|
| SYS-IBBOX-999-i9 | Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10900TE (65w mode), External PSU 120W |
| SYS-IBBOX-999-i5 | Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10500TE, External PSU 100W |
I/O — Rear panel
Front access
Where the IBBOX999 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
