EC3100

Name: EC3100
Brand: IBASE Technology
SKU: EC3100
Availability: InStock

Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series

Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series. Local warranty support and engineering customization available on request.

CPU

NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3

MEMORY

NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 8GB 128-bit LPDDR5 102 GB/sNVIDIA® Jetson Orin™ Nano 4GB: 4GB 128-bit LPDDR5 51 GB/s

STORAGE

1x M.2 2280 M-Key for SSD (Default NVMe 128 GB)

OPERATING TEMP.

-20°C~60°C (-40°F~140°F)

Edge AI ComputerAI Computing Platform

REQUEST QUOTE REQUEST DATASHEET

P/N # EC3100

Specifications

23 ROWS

System Mainboard	NVIDIA® Jetson Orin™ NX 16GB/8GBNVIDIA® Jetson Orin™ Nano 8GB/4GBModule with carrier board
CPU Type	NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
System Speed	EC3100-NX16 / EC3100-NX8: 2.0 GHzEC3100-NANO8 / EC3100-NANO4: 1.7 GHz
Memory	NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 8GB 128-bit LPDDR5 102 GB/sNVIDIA® Jetson Orin™ Nano 4GB: 4GB 128-bit LPDDR5 51 GB/s
AI Inference Computing Power	NX 16GB delivery up to 157 TOPSNX 8GB delivery up to 117 TOPSNano 8GB delivery up to 67 TOPSNano 4GB delivery up to 34 TOPS

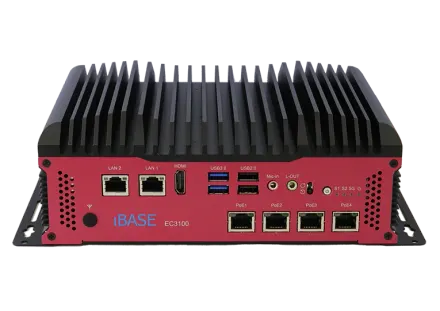

Front Panel External I/O	1x RJ45 GbE for OOB1x RJ45 GbE for system1x HDMI 2.1 Type-A2x USB 3.2 Type-A Gen2, 2x USB 2.0 Type-A1x Line-out jack1x Mic-in jack1x Power button1x Recovery button1x Reset button4x RJ45 GbE support PoE (optional)1x Antenna holes

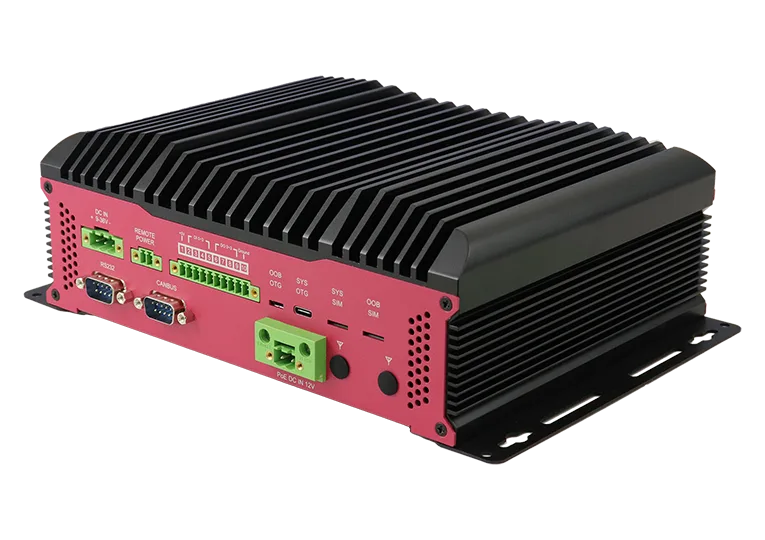

Rear Panel External I/O	1x DC-in 9V~36V lockable power jack1x Remote power connector4x DI + 4 x DO (pin1 with isolation output 5V @ 0.5A)2x Edge insert nano SIM socket1x USB 2.0 Type-C (OTG)1x USB 2.0 Micro-USB (OOB OTG)1x RS232 COM port DB9 connector1x CANBus DB9 connector2x Antenna holes
Expansion Slot	1x M.2 3052 B-key 4G/5G1x M.2 3042 B-key OOB 4G1x M.2 2230 E-key WiFi/BT/GPS1x M.2 2280 M-key NVMe
Storage	1x M.2 2280 M-Key for SSD (Default NVMe 128 GB)
Power Requirement	9V~36V DC
Power Supply	160W
Construction	SGCC
Chassis Color	Black & Red
Mounting	Wall mount
Weight	3.0 kg ( 6.61 lbs)
Dimensions	220mm (W) x 174mm (D) x 80mm (H)
Operating Temperature	-20°C~60°C (-40°F~140°F)
Storage Temperature	-40°C~80°C (-40°F~176°F)
Relative Humidity	10%~90% at 45°C (non-condensing)
Vibration	Operatiing: 1 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE, FCC
Operating System	Ubuntu 22.04JetPack 6.2
