ARS200

Name: ARS200
Brand: IBASE Technology
SKU: ARS200
Availability: InStock

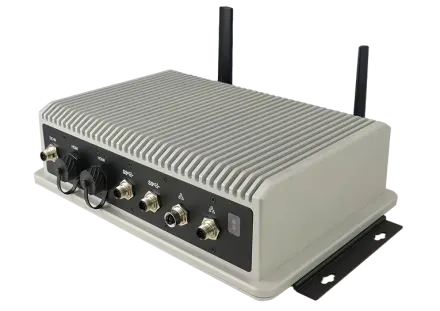

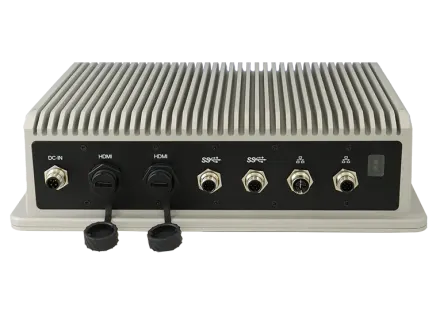

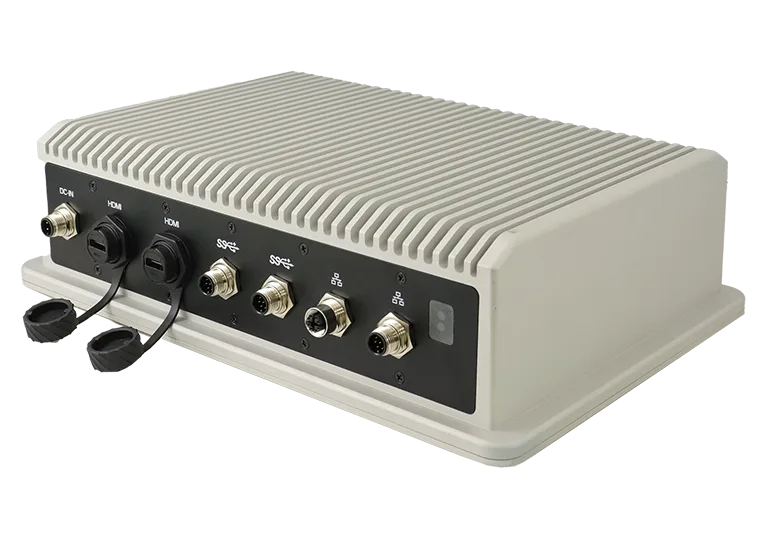

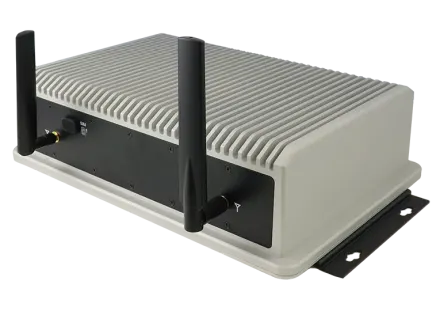

Advanced Ruggedized Waterproof Outdoor Computer with 14th/13th Gen Intel® Core™ U-series Processors

Advanced Ruggedized Waterproof Outdoor Computer with 14th/13th Gen Intel® Core™ U-series Processors. Local warranty support and engineering customization available on request.

CPU

14th/13th Gen Intel® Core™ U-series Processor

MEMORY

1x DDR5-5600 SO-DIMM, Max. 32GB

STORAGE

1x M.2 2280 M-key (SATA & PCI-E)

OPERATING TEMP.

-20°C ~ 70°C (14°F~158°F) *with airflow-10°C ~ 60°C (14°F to 140°F) without airflow

ARS Series Advanced…Edge Computing Wide…

REQUEST QUOTE REQUEST DATASHEET

P/N # ARS200

Driver

Specifications

19 ROWS

System Mainboard	ARS200-MB
CPU Type	14th/13th Gen Intel® Core™ U-series Processor
System Speed	Up to 4.6GHz
Memory	1x DDR5-5600 SO-DIMM, Max. 32GB
Front Panel External I/O	4x Antenna hole for WLAN/4G/5G module
Rear Panel External I/O	2x HDMI (C3 connector)2x 2.5 Gigabit LAN (M12 connector)2x RS232 (M12 connector)2x USB 3.2 (M12 connector)1x DC-Power (M12 connector)1x CAN bus1x DIO 8-in/8-outNote: Total 7x output include, 1x DC-Power
Expansion Slots	1x M.2 2042 E-key1x M.2 3052 B-key1x NANO SIM slot
Storage	1x M.2 2280 M-key (SATA & PCI-E)
Construction	Aluminum and steel
Chassis Color	Silver and Black
Mounting	Desktop or wall mounting (wall mounting kit included)Side mounting
Dimensions	319mm (W) x 230mm (D) x94mm (H)12.56” (W) x 9.06” (D) x 3.70” (H)
Weight	4.25 kg (approx)
Operating Temperature	-20°C ~ 70°C (14°F~158°F) *with airflow-10°C ~ 60°C (14°F to 140°F) without airflow
Storage Temperature	-20°C ~ 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE / LVD / FCC Class B (TBD)
