AMS302 Expandable Fanless and Compact System (Din rail mountable) for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP
AMS302 Expandable Fanless and Compact System (Din rail mountable) for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MB300 with Intel® Q170 PCH |
|---|---|
| CPU Type | 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop processors (35W TDP) |
| System Speed | Up to 3.4GHz |
| Memory | 2x DDR4-2133 SO-DIMM, Max. 32GB |
| Construction | Aluminum and steel |
| Chassis Color | Sliver |
| Front Panel External I/O | 2x Antenna hole for WLAN module |
| Rear Panel External I/O | 1x DVI-I + 1x DisplayPort connector · 1x Audio jack for Line-out · 4x USB 3.0 ports, 2x USB 2.0 ports · 1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming · 1x power button · 1x 2-pin terminal block for external power button · 1x RS232/422/485 port for COM#1 · 1x RS232 port for COM#2 · 2x RJ45 Gigabit Ethernet port · 1x 3 pins DC-in terminal block type for 24V |
| Expansion Slots | 1x Mini PCI-E sockets (full-sized) · 1x PCI-E(x8) slot · 1x PCI-E(x4) slot |
| Storage | 2x 2.5'' SSD (1x internal and 1x external-accessible) + · 1x mSATA socket |
| Mounting | Desktop or wall mounting (wall mount kit included) · Side mounting · DIN rail mounting (optional) |
| Weight | 3.3kg |
| Dimensions | 275mm (W) x 140mm (D) x 117mm (H) · 10.83” (W) x 5.51” (D) x 4.61” (H) |
| Certification | CE / LVD / FCC Class B |
| Operating Temperature | -10°C to 60°C (14°F~140°F) *with air flow · -10°C to 50°C (14°F to 122°F) without air flow |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation |
| Operatiing | 0.25 grms / 5~500Hz / random operation |
Features
| Feature 1 | Compact Fanless system using MB300 customized board |
|---|---|
| Feature 2 | Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors (35W TDP) |
| Feature 3 | 2MB MRAM module (optional) |
| Feature 4 | Front removable drive bay for HDD/SSD (supports RAID 0/1) |
| Feature 5 | 1x PCI-E(x8) + 1x PCI-E(x4) expansion slot |
| Feature 6 | Over/Under/Reverse voltage protection |
| Feature 7 | Wall mount and Din rail mount compatibility |
| Feature 8 | iSMART, iAMT (11.6) |
Ordering Information
| AMS302 | - Fanless system with MB300, w/ Intel® Core™ i7/i5/i3 Desktop processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, 1x PCI-E(x8) + 1x PCI-E(x4) expansion slots, w/o power adaptor |
|---|---|
| PS=24v180W | - 180W (24V@7.5A) power adaptor, bare wire type |
| AMS300-HDBRK | - 2nd HDD/Storage Internal Braket |
| Ant-WIRELESS | - WiFi/BT antenna kit |

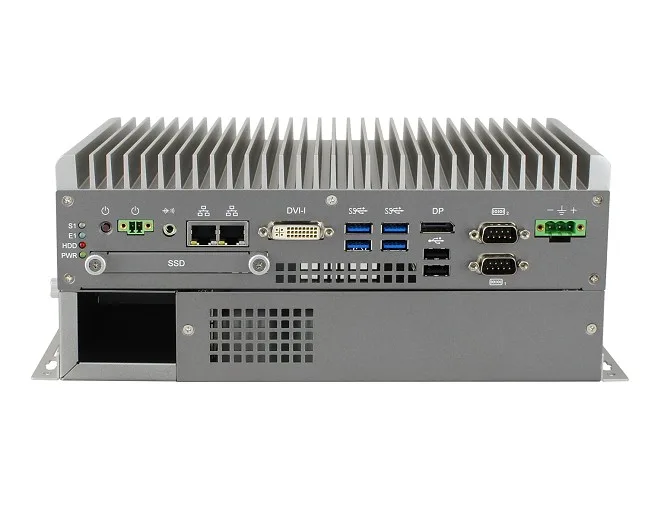

I/O — Rear panel

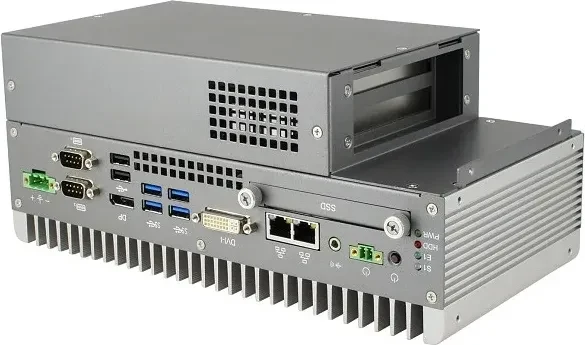

Front access
Where the AMS302 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
