AMS210

Name: AMS210
Brand: IBASE Technology
SKU: AMS210
Availability: InStock

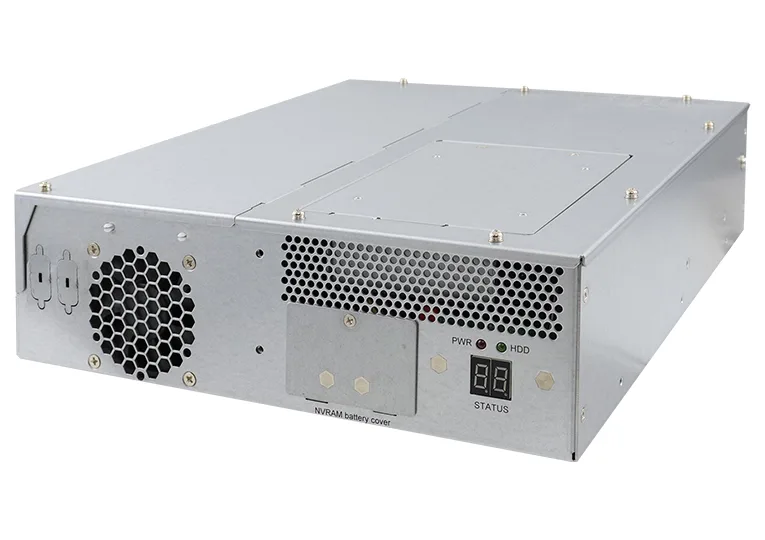

Automatic Control System with 9th/8th Gen Intel® Core™ Processor

Automatic Control System with 9th/8th Gen Intel® Core™ Processor. Local warranty support and engineering customization available on request.

CPU

9th/8th Gen Intel® Core™ Processor

MEMORY

2x 4GB DDR4-2666/2400 SO-DIMM

STORAGE

2x 2.5" SATA HDD or SSD (Optional 2nd drive bay bracket)

OPERATING TEMP.

0°C~55°C (32°F~131°F)

Automatic Control SystemAutomatic Control System

P/N # AMS210

19 ROWS

System Mainboard	Customized board
CPU Type	9th/8th Gen Intel® Core™ Processor
System Speed	Up to 4.0GHz
Memory	2x 4GB DDR4-2666/2400 SO-DIMM
Front Panel External I/O	2x RS232 (Optional COM port cable)
Rear Panel External I/O	1x RS232/RS422/RS4851x RS232 (optional COM port cable kit)1x Power On/Off switch3x DisplayPort (1x DP via pin-header)4x USB 2.04x RJ45 (Gigabit Ethernet)4x USB 3.11x Line-out1x DC input (3-pin Phoenix connector with lock)
Expansion Slots	ABP-IP701: 1x PCI-E(x16) + 1x PCI-E(x4) ABP-IP702: 1x PCI + 1x PCI-E(x16) ABP-IP703: 2x PCI
Storage	2x 2.5" SATA HDD or SSD (Optional 2nd drive bay bracket)
Construction	SGCC
Chassis Color	Sliver
Mounting	Desktop or wall mount
Dimensions	297.4mm(W) x 266.2mm(D) x 78.5mm(H)11.71" (W) x 10.48" (D) x 3.09" (H)
Weight	5.9 kg
Operating Temperature	0°C~55°C (32°F~131°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10~95%, non-condensing@60 degree C
Vibration	Operating: 3Grms / 5~500Hz
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE/FCC Class B/ LVD (Prescan only)
