AMI311
AMI311-970 - Fanless Embedded System with expansion slot for MI970F Mini-ITX Motherboard
AMI311-970 - Fanless Embedded System with expansion slot for MI970F Mini-ITX Motherboard. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MI970F |
|---|---|
| CPU Type | 3rd Generation Intel® Core™ i series mobile CPU, rPGA988B |
| System Speed | Up to 2.8GHz |
| Memory | 2x DDR3 SO-DIMM, Max 16GB |
| Construction | Aluminum |
| Chassis Color | Silver (Aluminum) |
| Front Panel External I/O | Power LED, HDD LED, Power button, Reset button, 2x USB2.0 ports |
| Rear Panel External I/O | 1x Dual COM port · 1x DVI-I+DVI-D connector · 1x Dual USB3.0+DisplayPort connector · 2x Dual USB2.0 + RJ45 connector · 1x Audio jack (3 port) · 1x 2.5” Removable HDD Tray · 1x PCI-E (x16) expansion slot |
| Storage | 1x 2.5” storage device (SATA II or SATAIII interface), 100GB industrial-grade HDD |
| Power Supply | 120W power adaptor |
| Mounting | Desktop or wall mount (wall mount kit included) |
| Certification | CE, FCC |
| System Dimensions | 231mm(L) x 199mm(W) x 97.75mm(H) |
| System Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| System Storage Temperature | -20° ~ 80°C (-4°F~176°F) |
| System Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | SSD: 5 grms / 5~500Hz / random operation |
| HDD | 0.25 grms / 5~500Hz / random operation |
Features
| Feature 1 | Supports 3rd Generation Intel® Core™ i mobile processors |
|---|---|
| Feature 2 | iSMART - for EuP/ErP power saving, auto-scheduler and power resume |
| Feature 3 | 1x removable 2.5” storage device |
| Feature 4 | 1x PCI-E(x16) graphics card expansion slot |
| Feature 5 | Available in black color |
| Feature 6 | Fanless operation |
| Feature 7 | Wall mount kit included |
Ordering Information
| AMI311-970-3610ME | - Aluminum System, Fanless Design w/ Intel® Core™i5-3610ME(2.7GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor |
|---|---|
| AMI311-970-3120ME | - Aluminum System, Fanless Design w/ Intel® Core™i3-3120ME(2.4GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor |
| AMI311-970-1020E | - Aluminum System, Fanless Design w/ Intel® Celeron® 1020E(2.2GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor |
I/O — Rear panel

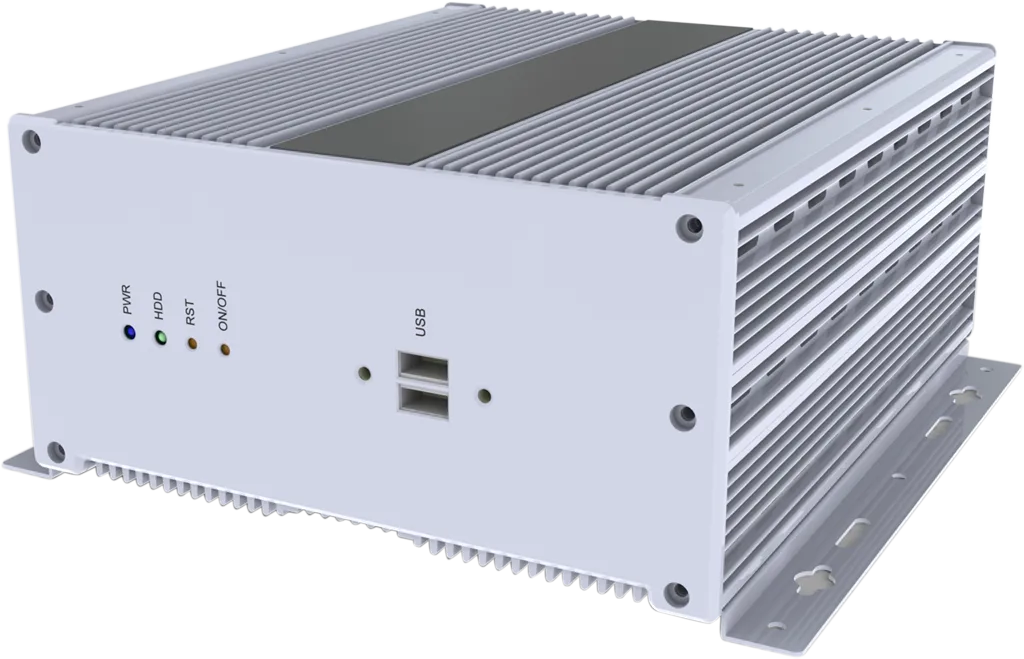

Front access
Where the AMI311 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
