AGS101T
Compact IoT Gateway Edge Computing System with Intel® Atom® x6212RE/ x6414RE Processors
Compact IoT Gateway Edge Computing System with Intel® Atom® x6212RE/ x6414RE Processors. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IB803T |
|---|---|
| CPU Type | Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP) |
| System Speed | Up to 1.5GHz |
| Memory | 1x DDR4 SO-DIMM, Max. 16GB |

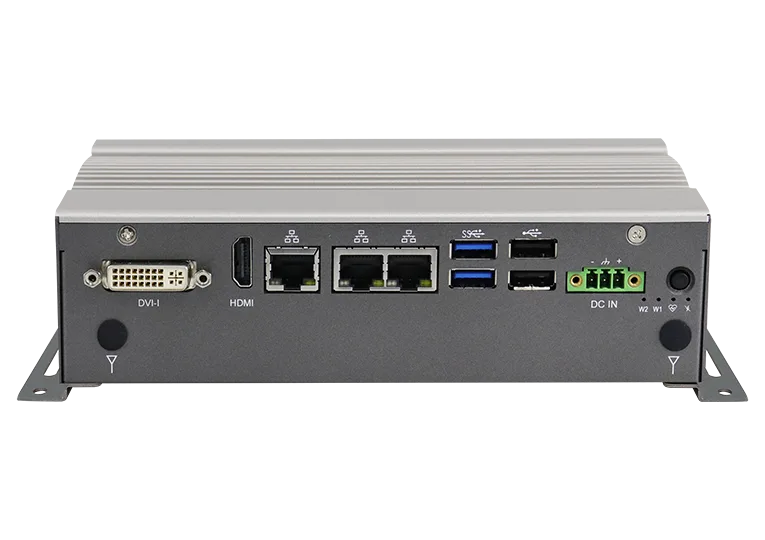

| Rear Panel External I/O | 1x DVI-1 & 1x HDMI2x USB 3.1 ports, 2x USB 2.0 port3x RJ45 2.5G Ethernet port4x LED indicators (HDD, WLAN, WWAN)1x power button with Green LED1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN module |

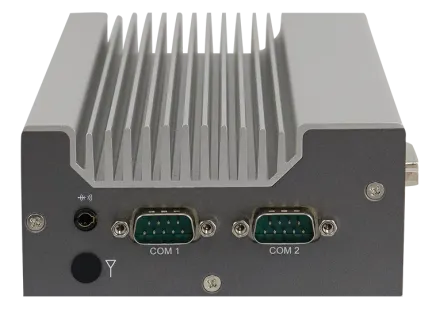

| Left Panel External I/O | 2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out |
| Right Panel External I/O | 2x SIM card slot1x Antenna hole for WLAN module |
| Expansion Slots | 1x Full-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + SATA)1x M.2 B-Key socket (USB 3.0 + PCI-E) |
| Storage | 1x mSATA socket (Mini-PCI-E)1x 2.5” SSD |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included) |
| Dimensions | 218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.05mm (H) |
| Weight | 1.05 kg |
| Operating Temperature | -20°C~70°C (-4°F~158°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
| Relative Humidity | 5~90% @ 60°C, (non-condensing) |
| Vibration | Operatiing: 1 Grms/ 3~500 Hz / random operation (with IEC 60068-2-64) |
| Shock | Operating: 30G/11 ms DurationNon-operating: 40G/11 ms Duration |
| Certification | CE / LVD / FCC Class B |
I/O — Rear panel
Front access
Where the AGS101T is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
