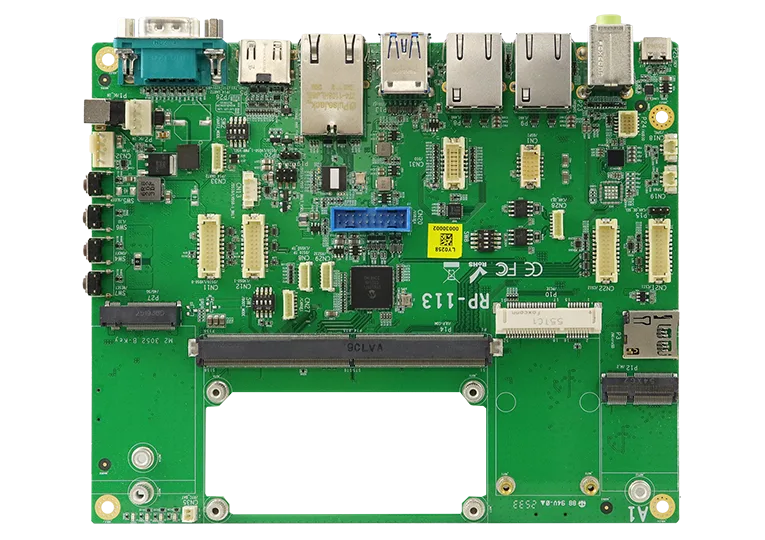

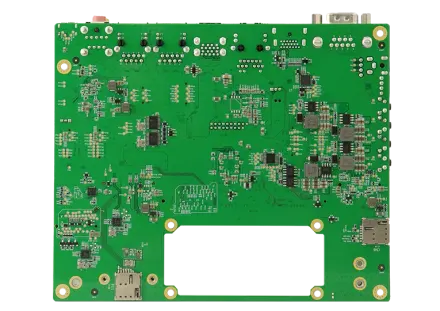

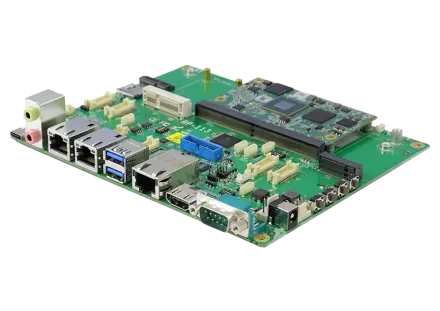

RP-113
Carrier Board for NXP SMARC™ Module
Carrier Board for NXP SMARC™ Module. Local warranty support and engineering customization available on request.
OPERATING TEMP.
-40°C ~ 85°C (-40°F ~ 185°F)
POWER INPUT
19V~24V DC-in
FORM FACTOR
Carrier BoardCompliant with SMARC™ 2.2
EDGE I/O
1x RJ45 10GbE2x RJ45 GbE2x USB 3.0 Type A1x USB 2.0 Type C for firmware download1x HDMI1x COM (RS232/422/485)1x SD Slot2x Nano SIM slot1x DC-in jack (19V~24V)1x Headphone & MIC
SMARC 2.2 Carrier BoardCarrier Board for SMARC…
P/N # RP-113
Specifications
10 ROWS
| Form Factor | Carrier BoardCompliant with SMARC™ 2.2 |
|---|---|
| Edge I/O | 1x RJ45 10GbE2x RJ45 GbE2x USB 3.0 Type A1x USB 2.0 Type C for firmware download1x HDMI1x COM (RS232/422/485)1x SD Slot2x Nano SIM slot1x DC-in jack (19V~24V)1x Headphone & MIC |
| Internal I/O | 2x CAN bus 2.0B2x CAN bus via SPI2x USB3.0 (pin header)1x Fan (4-wire)1x 3.3V/5V/12V back light wafer1x MIPI display power (3.3V/5V)1x MIPI-DSI/LVDS 4-lanes1x LVDS 4-lanes1x MIPI-CSI2 2-lanes1x MIPI-CSI2 4-lanes12x GPIOs (1.8V)2x RS232 (RX/TX, pin header)1xI²C (capacitive touch pin header)1x I²S1x QSPI (pin header)1x mPCIe slot (PCIe, USB2.0, PCM)1x M.2 E-Key 2230 slot (PCIe, SDIO, UART, USB 2.0)1x M.2 B-Key 3042/3052 slot (USB 3.0 only)1x Speaker R and L1x RTC battery4x LEDs |
| Jumpers, Switches & Buttons | 1x Boot select switch1x Power button1x Reset button1x Sleep button1x LID button |
| Power Input | 19V~24V DC-in |
| Dimensions | 170mm x 140mm (6.7” x 5.5”) |
| Environment | Humidity: 0% to 90% RH at 60° C (non-condensing) |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| OS Support | Based on the CPU module |
| Certification | CE/FCC Class B |
I/O — Rear panel
Front access
Where the RP-113 is deployed
USE CASE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
USE CASE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
USE CASE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
USE CASE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
