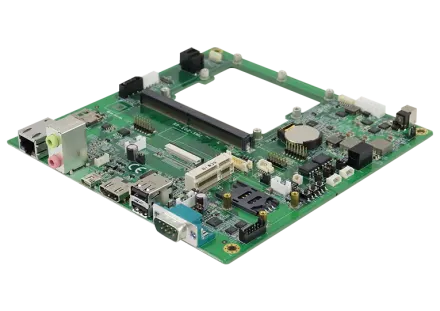

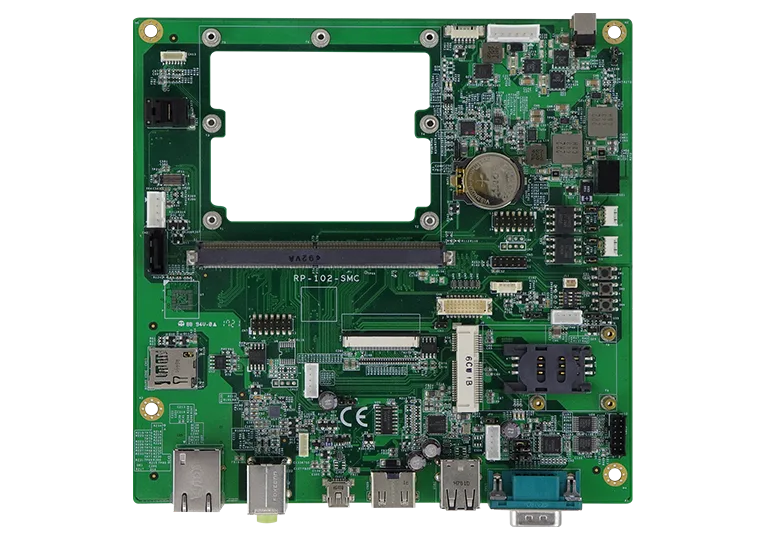

RP-102-SMC
Carrier Board for SMARC™ 1.0 CPU Module
Carrier Board for SMARC™ 1.0 CPU Module. Local warranty support and engineering customization available on request.
OPERATING TEMP.
-40°C ~ 85°C (-40°F ~ 185°F)
POWER INPUT
19V DC-in
FORM FACTOR
SMARC™ 1.0 Carrier Board
EDGE I/O
1x DC-in jack1x RJ45 GbE LAN1x Microphone + Headphone2x USB 2.0 host1x USB OTG1x HDMI1x COM (RS232/422/485)
SMARC 1.0 Carrier BoardCarrier Board for SMARC…
P/N # RP-102-SMC
Specifications
10 ROWS
| Form Factor | SMARC™ 1.0 Carrier Board |
|---|---|
| Edge I/O | 1x DC-in jack1x RJ45 GbE LAN1x Microphone + Headphone2x USB 2.0 host1x USB OTG1x HDMI1x COM (RS232/422/485) |
| Internal I/O | 2x CAN bus 2.0B1x 18/24-bit single CH LVDS1x 18/24-bit TTL box header1x LCD DDC (I²C)1x LCD backlight connector1x CSI-MIPI2x USB 2.0 host8x GPIO pin header2x RS232 box header1x SIM socket1x SPDIF1x Speaker box header1x Micro-SD socket2x I²C1x SATA II1x Full-size Mini PCI-E with USB interface |
| Jumpers, Switches & Buttons | 1x Boot media select switch (SD/eMMC)1x Reset button1x Power button1x GPI button1x RS232/422/485 (by jumper selection)1x Backlight power jumper |
| Power Input | 19V DC-in |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Environment | Humidity: 0% to 90% RH at 60° C (non-condensing)Vibration: Non-operating, 3Hz to 500Hz, 15mins |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| OS Support | Based on the CPU module |
| Certification | CE/FCC Class A |
I/O — Rear panel
Front access
Where the RP-102-SMC is deployed
USE CASE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
USE CASE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
USE CASE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
USE CASE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
