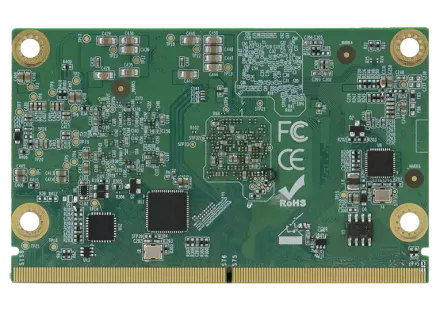

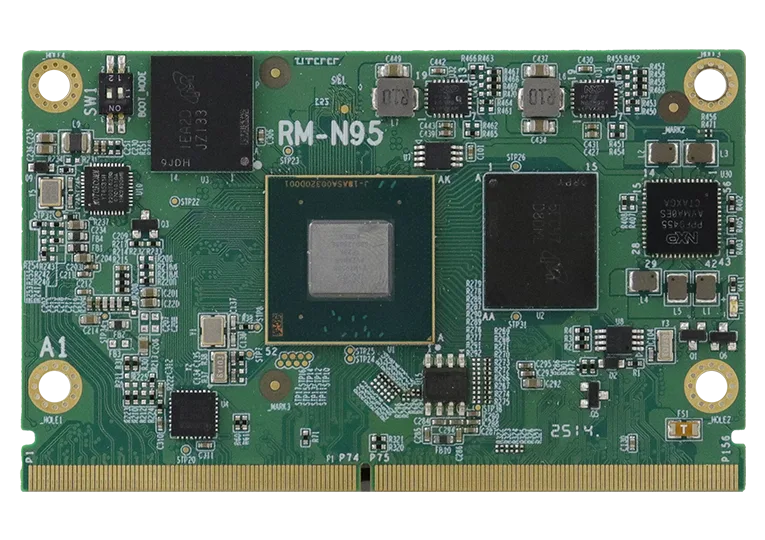

RM-N95
AI Edge Board with Six Cortex-A55/Cortex-M33/Cortex-M7 processors
AI Edge Board with Six Cortex-A55/Cortex-M33/Cortex-M7 processors. Local warranty support and engineering customization available on request.
CPU
NXP i.MX95 with Six Cortex-A55 cores (up to 2.0GHz)
MEMORY
System memory: 3GB LPDDR4 on board (option: 4/8GB)Data Memory: 16GB eMMC on board (up to 256GB)
STORAGE
uSDHC (eMMC/SD)
DISPLAY
1x 4-lane MIPI-DSI (4kp30 or 3840 x 1440p60, BOM selectable)1x 8-lane or 2x 4-lane LVDS (up to 1080p or 1920 x 1200 or dual 720P)1x HDMI interface (up to 4kp30 or 3840 x 1440p60)
AI Edge BoardAI Computing Platform
P/N # RM-N95
Introduction to Watchdog Timer Specifications
26 ROWS
| Form Factor | SMARC™ 2.1 Module |
|---|---|
| CPU Type | NXP i.MX95 with Six Cortex-A55 cores (up to 2.0GHz) |
| CPU Socket | N/A |
| PCH | N/A |
| Memory | System memory: 3GB LPDDR4 on board (option: 4/8GB)Data Memory: 16GB eMMC on board (up to 256GB) |
| BIOS | N/A |
| H/W Monitor | N/A |
| Graphics | Arm Mali-G310 V2 GPU3D GPUOpenGL® ES 3.2Vulkan® 1.3OpenCL 3.0 |
| Display | 1x 4-lane MIPI-DSI (4kp30 or 3840 x 1440p60, BOM selectable)1x 8-lane or 2x 4-lane LVDS (up to 1080p or 1920 x 1200 or dual 720P)1x HDMI interface (up to 4kp30 or 3840 x 1440p60) |
| Image Capture Interface | 1x MIPI CSI-2 2-lane (BOM Optional)1x MIPI CSI-2 4-lane |
| Video Codec | Decoder: H.265, H.264, 4Kp30Encoder: H.265, H.264, 4Kp30 |
| I/O Chipset | NXP Cortex™ A55 i.MX95 Six Cores 2.0 GHz IndustrialGrade Support of 64-bit Arm® v8.2 architectureCortex®-M7 CPU operating up to 800 MHzCortex®-M33 CPU operating up to 333 MHz |
| Watchdog | 1~6553s, power on/off 4s |
| External I/O | N/A |
| Internal I/O | 1x 10 GbE Ethernet2x 10/100/1000 Mbps Ethernet1x USB 3.0 Type-C with PHY1x USB 2.0 with PHY1x 4-bit high-speed SDIO2x 4-wire UART and 2x 2-wire UART14x GPIO2x I²S4x I²C1x SPI interface1x XSPI interface2x PCIe 3.0 x1 lanes2x CAN FD |
| Expansion IO | N/A |
| TPM | Yes (Discrete TPM 2.0) |
| Storage | uSDHC (eMMC/SD) |
| Dimensions | 82mm x 50mm (3.2 x 2) |
| Others | RTC: Yes1x Green LED for power on/off |
| Power Consumption | 9.60 W |
| Operating Temperature | -40°C to +85°C (-40°F~+185°F)Industrial grade, with heat-sink |
| Storage Temperature | -40°C to +85°C (-40°F~+185°F) |
| Relative Humidity | 0%~90% (non-condensing@60°C) |
| Certification | CE/ FCC Class-B |
| Operating System | Yocto5Other OS (by request) |
I/O — Rear panel
Front access
Where the RM-N95 is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
