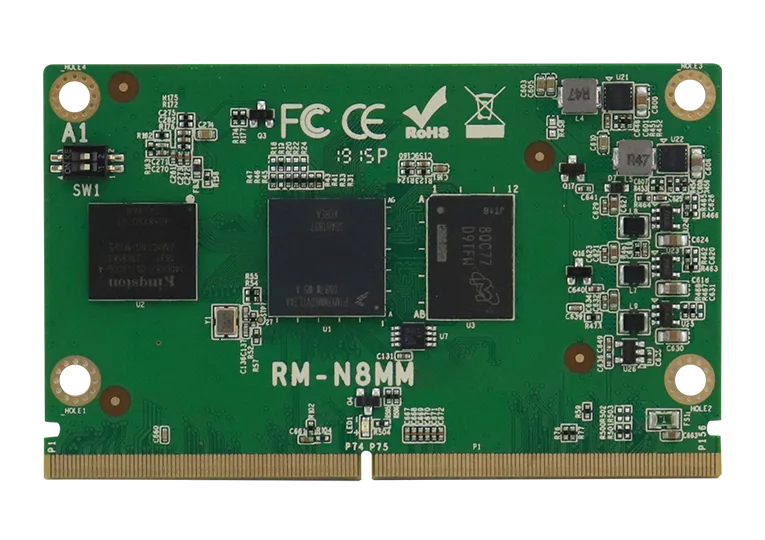

RM N8MMI Series

Name: RM N8MMI Series
Brand: IBASE Technology
SKU: RM_N8MMI_Series
Availability: InStock

Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad-core Cortex-A53/Cortex-M4 i.MX 8M Mini Processor

Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad-core Cortex-A53/Cortex-M4 i.MX 8M Mini Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

NXP i.MX 8M Mini Quad-core Cortex™-A53 and Cortex™-M4 processor

MÉMOIRE

2GB LPDDR4 on board

AFFICHAGE

1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz

ETHERNET

1x GbE LAN

NXP i MX8M based SMARC…SMARC Module

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # RM_N8MMI_Series

Spécifications

24 LIGNES

Format	SMARC™ 2.0
Processeur	NXP i.MX 8M Mini Quad-core Cortex™-A53 and Cortex™-M4 processor
Mémoire système	2GB LPDDR4 on board
Mémoire flash	8GB eMMC on board
Affichage	1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz
Codec vidéo	• 1080p60 VP9• 1080p60 HEVC/H.265 decoder• 1080p60 AVC/H.264 Baseline, Main, High decoder• 1080p60 VP8• 1080p60 AVC/H.264 encoder• 1080p60 VP8• TrustZone support
Graphiques	• GCNanoUltra• Vivante GC320
Audio Interface	2x I²S, 1x SPDIF
LAN	1x GbE LAN
USB	2x USB 2.0 with OTG interface
Interface de capture d’image	1x MIPI-CSI2 4-lane
Serial Interface	4x UART, 2x SPI Interface
Media Interface	2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
PCI-E	1x PCIe (x1) Gen2
SATA	N/A
GPIO	12x GPIO
I²C	4x I²C
Autres	Wireless WCN3980 (option)
CAN Bus	N/A
Dimensions	82mm x 50mm (3.2" x 2")
Environnement	Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins
Température de fonctionnement	-40°C ~ +85°C (-40°F ~ 185°F)
Systèmes d’exploitation pris en charge	Yocto 2.5Android 9Other OS (by request)
Certification	CE/ FCC Class-B
