IP419

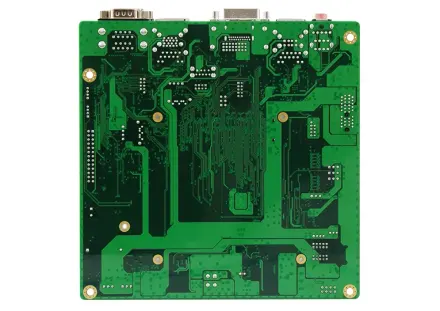

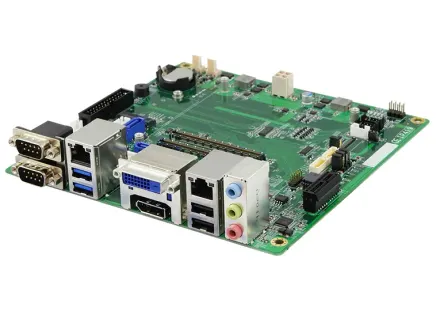

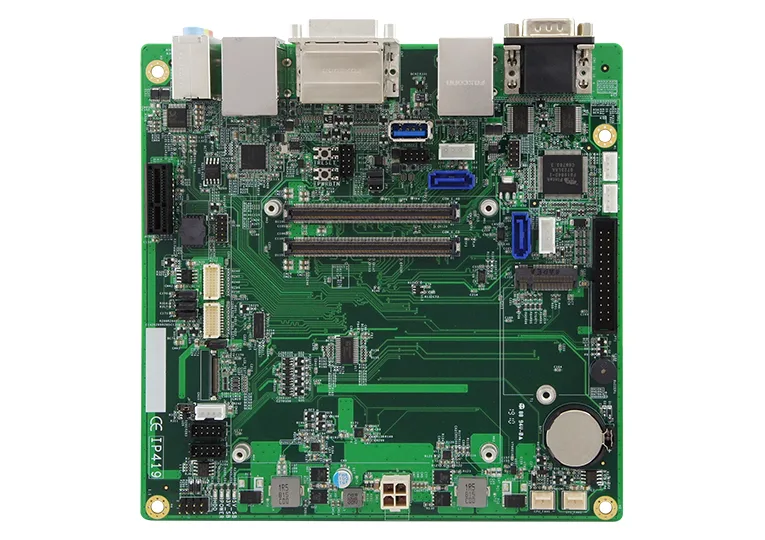

COM Express Type 6 (R3.0) Carrier Board
COM Express Type 6 (R3.0) Carrier Board. Local warranty support and engineering customization available on request.
STORAGE
-40°C~90°C (-40°F~194°F)
DISPLAY
2x DDI (1x DisplayPort 1x DVI-D) 1x LVDS or 1x eDP (By option) 1x 18/24-bit dual-channel LVDS or 1x eDP (optionl)
ETHERNET
LAN1: Derived from COM Express CPU module LAN2: 1x Intel® I210IT
OPERATING TEMP.
-20°C~70°C (-4°F~-94°F)
COM Express Type 6Carrier board
P/N # IP419
Introduction to Watchdog Timer Specifications
21 ROWS
| Form Factor | Mini-ITX |
|---|---|
| Module Interface | COM Express Type-6 (R3.0) |
| Expansions slots | 1x PCI-E(x1) slot 1x M.2 socket |
| Mini Type Slots | N/A |
| Video Output | 2x DDI (1x DisplayPort 1x DVI-D) 1x LVDS or 1x eDP (By option) 1x 18/24-bit dual-channel LVDS or 1x eDP (optionl) |
| Ethernet | LAN1: Derived from COM Express CPU module LAN2: 1x Intel® I210IT |
| I/O Chip | Fintek F81964D-I |
| Serial Port | 4x COM ports -2x COM ports (from Super I/O) -2x COM ports (from CPU module,TX/RX) |
| USB 2.0 | Derived from COM Express module4x USB 2.0, (one port for OTG) |
| USB 3.0/ 3.1 | 2x USB 3.0 |
| Serial ATA | Derived from COM Express module2x SATA III |
| Audio | Built-in ALC662 or ALC888S HD audio codec |
| Digital I/O | 4-in/4-out |
| Watchdog | 256 levels |
| KB/MS | N/A |
| Parallel | 1x Parallel port via box header |
| Dimensions (L x W) | 170 mm x 170 mm (6.7" x 6.7") |
| Power | DC-in (12V) 2x 2-pin connector for 12V DC power-in |
| Operating Temperature | -20°C~70°C (-4°F~-94°F) |
| Storage Temperature | -40°C~90°C (-40°F~194°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
I/O — Rear panel
Front access
Where the IP419 is deployed
USE CASE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
USE CASE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
USE CASE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
USE CASE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
