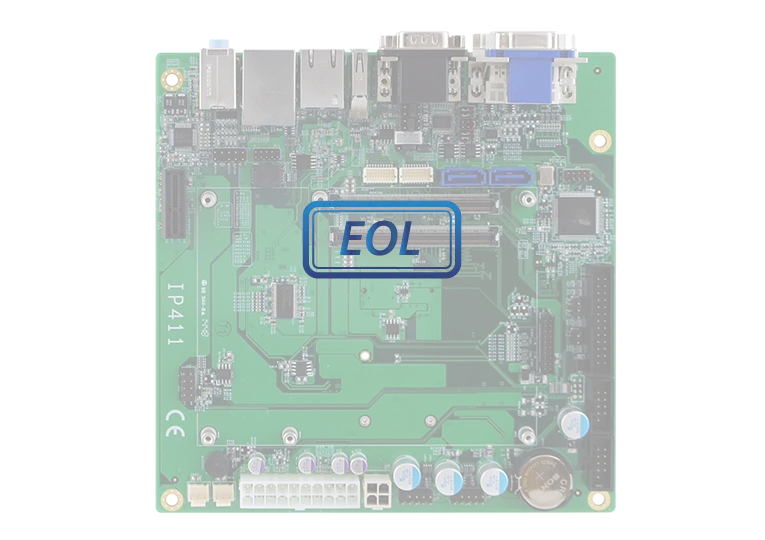

COM Express Type 6 Carrier Board
COM Express Type 6 Carrier Board. Local warranty support and engineering customization available on request.
STORAGE
-20°C~80°C (-4°F~176°F)
DISPLAY
1x VGA2x DDI (1 x DVI-D, 1 x DVI-D shared with LVDS)1x 18/24-bit dual-channel LVDS
ETHERNET
Derived from COM Express CPU module as GbE#1Intel® I210IT Gigabit LAN x 1 as GbE #2
OPERATING TEMP.
0°C~60°C (32°F~140°F)
COM Express Type 6Carrier board
P/N # IP411
Introduction to Watchdog Timer Specifications
21 ROWS
| Form Factor | Mini-ITX |
|---|---|
| Module Interface | COM Express Type-6 |
| Expansions slots | 1x PCI-E(x1) slot |
| Mini Type Slots | N/A |
| Video Output | 1x VGA2x DDI (1 x DVI-D, 1 x DVI-D shared with LVDS)1x 18/24-bit dual-channel LVDS |
| Ethernet | Derived from COM Express CPU module as GbE#1Intel® I210IT Gigabit LAN x 1 as GbE #2 |
| I/O Chip | Fintek F81846AD-I |
| Serial Port | 4x COM ports2x COM ports (from Super I/O)2x COM ports (from CPU module, TX/RX) |
| USB 2.0 | Derived from COM Express CPU module8x USB 2.0 |
| USB 3.0/ 3.1 | 1x USB 3.0 |
| Serial ATA | Derived from COM Express CPU module2x SATA III |
| Audio | Built-in ALC662 or ALC888S HD audio codec |
| Digital I/O | 4-in/4-out |
| Watchdog | 256 levels |
| KB/MS | Yes |
| Parallel | 1x Parallel port via pin header |
| Dimensions (L x W) | 170mm x 170mm (6.7" x 6.7") |
| Power | 20+4pins connector for ATX |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
