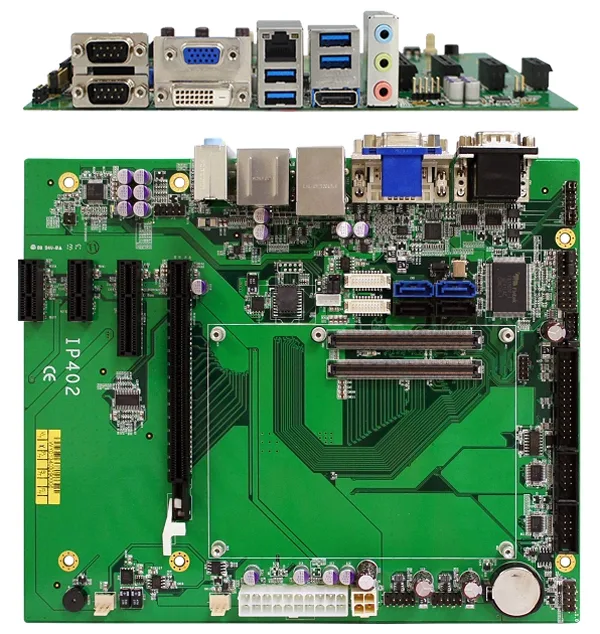

IP402
Flex ATX COM Express Baseboard
Flex ATX COM Express Baseboard. Local warranty support and engineering customization available on request.
P/N # IP402
Introduction to Watchdog Timer Features
9 ROWS
| Feature 1 | Fintek F81865F-I Super I/O |
|---|---|
| Feature 2 | Watchdog timer, 4-in / 4-out digital I/O |
| Feature 3 | 1x PCI-E(x16) , 1x PCI-E(x4), 1x PCI-E(x1) expansion slots |
| Feature 4 | Edge connectors for COM1/2, VGA, DVI, DisplayPort, dual RJ45 |
| Feature 5 | 2x USB (3.0), 2x USB (2.0), audio connector (Line-out, Line-in and Mic.) |
| Feature 6 | Board connectors for 2x COM, 1x KB/MS, 2x SATA III, 2x SATAII, 2x LVDS |
| Feature 7 | 8x USB (2.0), 1x LPT, COM Express ( Type 6) connector |
| Feature 8 | ATX power connector |
| Feature 9 | 190 x 228mm |
I/O — Rear panel
Front access
Where the IP402 is deployed
USE CASE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
USE CASE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
USE CASE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
USE CASE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
