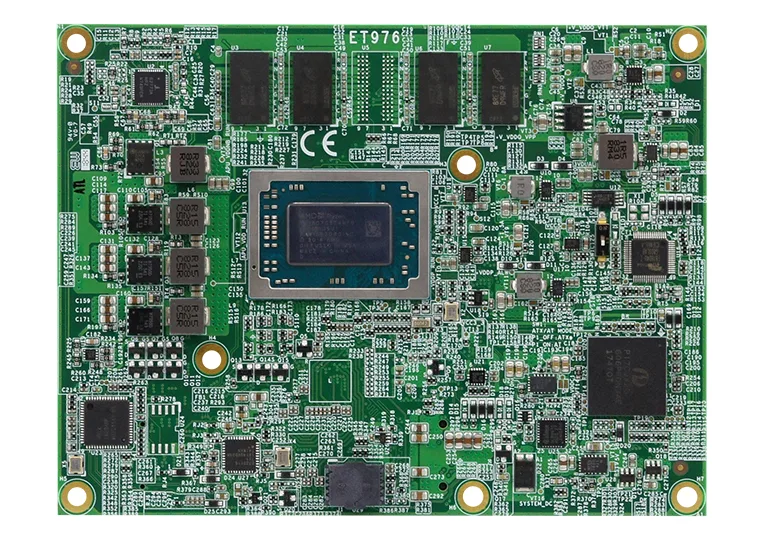

ET976
COM Express Type 6 (R3.0) CPU Module with AMD Ryzen™ Embedded V1000 Processor
COM Express Type 6 (R3.0) CPU Module with AMD Ryzen™ Embedded V1000 Processor. Local warranty support and engineering customization available on request.
Specifications
| CPU | Onboard AMD Ryzen™ Embedded V1000 Series |
|---|---|
| PCH | N/A |
| Memory | Onboard Memory 4GB/8GB DDR4 |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 1x PEG(x8) 8x PCI-E(x1) |
| Graphics Controller | AMD Radeon™ Vega GPU integrated |
| Video Output | 2x DDI1x LVDS or 1x eDP (option) |
| Ethernet | Intel® I211AT or I210AT Gigabit LAN |
| I/O Chipset | Fintek F81804U-I |
| Serial Port | 2x UART (Tx/Rx only) |
| USB 2.0 | 8x USB 2.0 via carrier board |
| USB 3.X | 4x USB 3.1 via carrier board |
| Serial ATA | 2x SATA III via carrier board |
| Audio | AMD Ryzen™ built-in HD audio controller |
| TPM | TPM (2.0) |
| Others | Digial I/O (4in/4-out) |
| Dimensions (L x W) | 125mm x 95mm (4.92" x 3.74") |
| Power Consumption | AMD V1807B, 3.35GHz w/ 4GB DDR4-2666 +12V:6.28A; +5V: 0.28A, +5VSB: 0.16A, +3.3V: 0.52A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

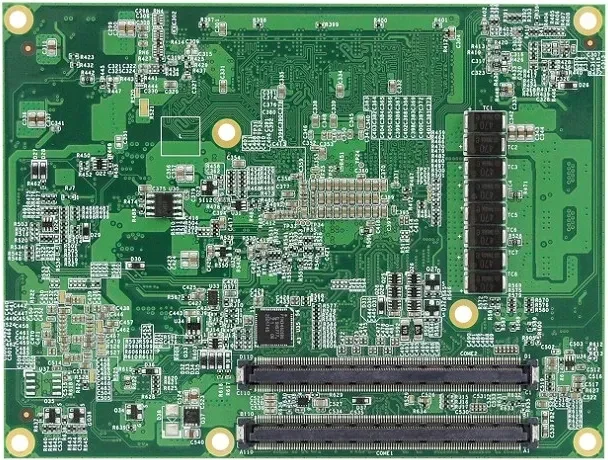

I/O — Rear panel
Front access
Where the ET976 is deployed
Space-constrained products needing a certified compute module rather than a full board.
Custom carrier boards built around a standardized, sourceable CPU module.
Low-power modules for diagnostic and portable instrument designs.
Compact compute modules for motion controllers and mobile robotics platforms.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
