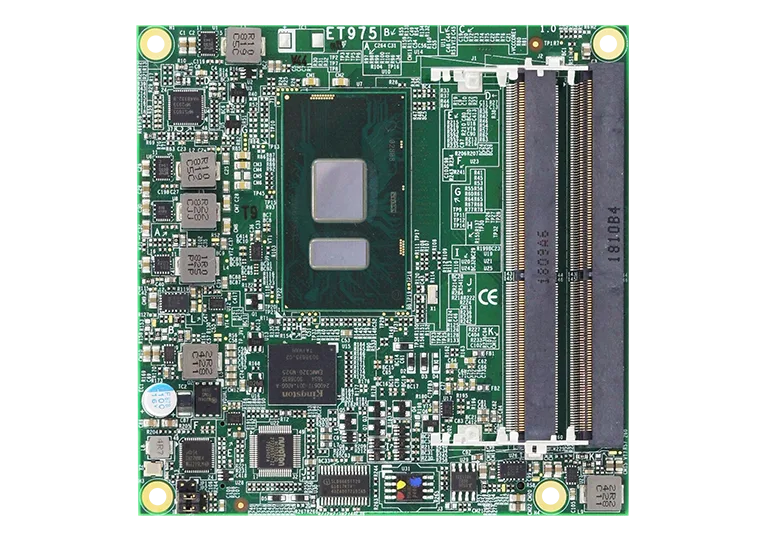

ET975

Name: ET975
Brand: IBASE Technology
SKU: ET975
Availability: InStock

COM Express Type 6 CPU Module with 7th Gen Intel® Core™ U-Series Processor

COM Express Type 6 CPU Module with 7th Gen Intel® Core™ U-Series Processor. Local warranty support and engineering customization available on request.

CPU

Onboard 7th Gen Intel® Core™ U-Series processors

MEMORY

2x DDR4 SO-DIMM, Max. 32GB

STORAGE

eMMC 5.0, up to 32GB (option)

DISPLAY

24-bit dual-channel LVDS on carrier board

COM ExpressCPU Module

REQUEST QUOTE REQUEST DATASHEET

P/N # ET975

Driver Introduction to Watchdog Timer

Specifications

24 ROWS

CPU	Onboard 7th Gen Intel® Core™ U-Series processors
PCH	N/A
Memory	2x DDR4 SO-DIMM, Max. 32GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0, up to 32GB (option)
Expansion Slots	4x PCI-E(x1), 1x PCI-E(x4)
Graphics Controller	7th Gen Intel® Core™ U-Series processor integrated graphics, Supports DVI, HDMI, DisplayPort, LVDS
Video Output	24-bit dual-channel LVDS on carrier board
Ethernet	Intel® I219LM LAN PHY
I/O Chipset	Nuvoton NCT5523D on board (supports Tx/Rx only)
Serial Port	2x COM port (Tx/Rx only))
USB 2.0	8x USB 2.0 via baseboard
USB 3.X	4x USB 3.0 via baseboard
Serial ATA	2x SATA III via carrier board
Audio	7th Gen Intel® Core™ U-Series processor built-in HD audio + Realtek ALC662 or ALC888S codec
TPM	TPM (2.0)
Others	N/A
Dimensions (L x W)	95mm x 95mm (3.74" x 3.74")
Power Consumption	Intel® i7-7600U, 2.8GHz w/ 8GB DDR4-2133 +12V: 3.47A; +5V: 1.4A +3.3V: 0.33, +5[removed] 0.10A
Operating Temperature	-20°C~60°C (-4°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)
