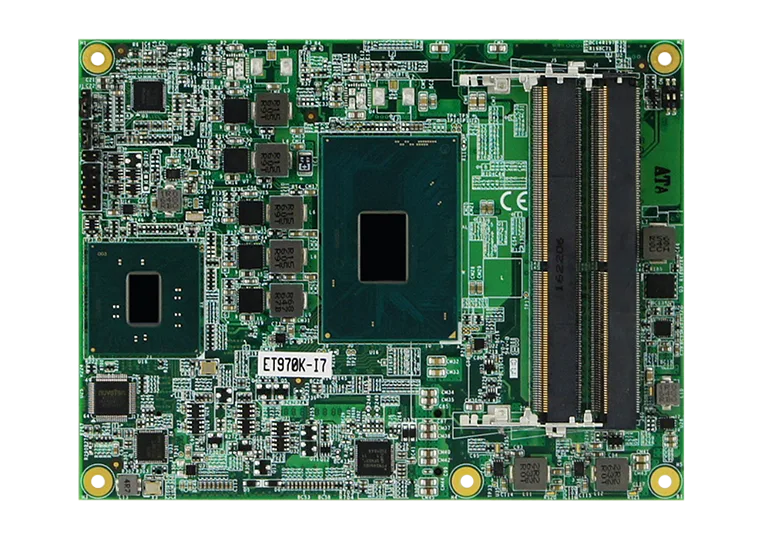

ET970
Module CPU COM Express Type 6 — 7th Gen Intel® Xeon® E3 / Core™i7/i5/i3 Processors
Module CPU COM Express Type 6 — 7th Gen Intel® Xeon® E3 / Core™i7/i5/i3 Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | BGA1440 for 7th Gen Intel® Xeon® E3/ Core™ i7/i5/i3 processors |
|---|---|
| PCH | Intel® QM175 & CM238 & HM175 PCH |
| Mémoire | 2x DDR4-2400 SO-DIMM, Max 32GB |
| BIOS | AM |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Interface de stockage | N/A |
| Emplacements d’extension | 8x PCI-E (x1), 1x PCI-E(x16) |
| Contrôleur graphique | 7th Gen Intel® Core™ processor integrated graphics, supports DVI, HDMI, DisplayPort, LVDS |
| Sortie vidéo | 24-bit dual-channels LVDS on Carrier Board |
| Ethernet | Intel® I219LM LAN PHY/Intel® I219V LAN GbE |
| Chipset d’E/S | Nuvoton NCT5523D |
| Port série | 2x COM ports (Tx/Rx only) |
| USB 2.0 | 8x USB 2.0 via carrier board |
| USB 3.X | 4x USB 3.0 via carrier board |
| Serial ATA | 4x SATA III via carrier board |
| Audio | Intel® QM175 PCH built-in HD audio w/ Realtek ALC662 or ALC888S codec on Carrier Board (IP413) |
| TPM | TPM (2.0) |
| Autres | Digital I/O (4-in/4-out) |
| Dimensions (L x l) | 95mm x 125mm (3.74" x 4.92") |
| Consommation électrique | Intel® i7-7820EQ, 3.0GHz w/16GB DDR4-2400+12V: 4.48A; +5V: 0.65A+3.3V: 0.27A, +5[removed] 0.13A |
| Température de fonctionnement | -40°C~75°C (-40°F~167°F)(ET970K-I3)0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 10%~90% (non-condensing) |

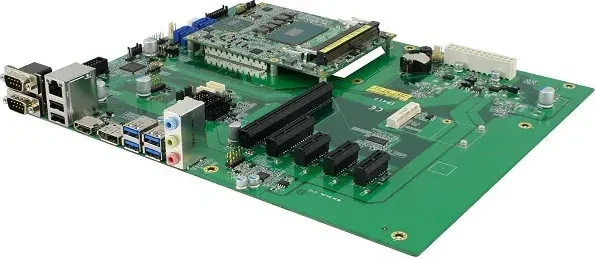

E/S — Panneau arrière
