ET950

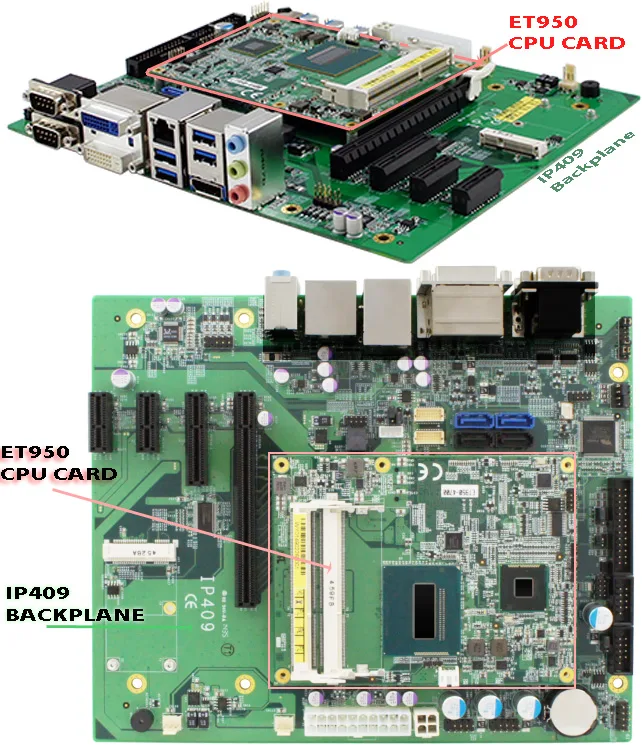

ET950-COM Express Basic Module (Type 6) 4th Generation Intel® Core™ i7/i5/i3 w/ Intel® QM87 PCH
ET950-COM Express Basic Module (Type 6) 4th Generation Intel® Core™ i7/i5/i3 w/ Intel® QM87 PCH. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Type de processeur | Onboard 4th Generation Intel® Core™ i7/i5/i3 QC / DC processors |
|---|---|
| Mémoire système | 2x DDR3 SO-DIMM, Max. 16GB (Non-ECC) |
| Chipset système | Intel® QM87 PCH |
| BIOS | AMI BIOS |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Extension | Slot · 1x PCI-E(x16), 1x PCI-E(x4), 2x PCI-E(x1), · 1x Mini PCI-E on baseboard (IP409) · 4th Generation Intel® Core™Processor integrated Gfx, supports DVI-D, DVI-I, DisplayPort, LVDS · Display Interface 24-bit single channel LVDS on baseboard (IP402) VGA Memory · Max. Shared memory – 1024MB |
| Contrôleur | 1x Intel® I217LM Gigabit LAN PHY · 1x RJ45 on baseboard (IP409) |
| I/O Chipse | Nuvoton NCT5523D onboard (support Tx /Rx only) · Below functions on baseboard (IP409) · 1x LPT, 1x KB, 1x Mouse, 2x SATA II, 2x SATA III, · 2x RS232 (Full function) |
| USB | 4x USB 3.0 ports via baseboard (IP409) · 4x USB 2.0 ports via baseboard (IP409) |
| Audio | Intel® QM87 PCH built-in audio w/ Realtek ALC662 codec on baseboard (IP409) |
| E/S numériques | (4 in / 4 out) on baseboard (IP409) |
| Dimensions | 95mm x 125mm (3.74" x 4.49") · Intel® Core™ i7-4700EQ 2.4 GHz w/ 4GB DDR3-l600 |
| +3.3V | 0.23A +5V: 0.66A |
| +12V | 5.24A |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 90% (non-condensing @60°C) |
Caractéristiques
| Caractéristique 1 | Onboard 4th Generation Intel® Core™ i7/i5/i3 QC / DC processors |
|---|---|
| Caractéristique 2 | 2x DDR3 SO-DIMM, Max. 16GB |
| Caractéristique 3 | Single Gigabit LAN via baseboard (IP409) |
| Caractéristique 4 | 2x SATA II, 2x SATA III, 4x USB 3.0, 4x USB 2.0, 2x COM via baseboard (IP409) |
| Caractéristique 5 | Supports max. 3x independent displays, DisplayPort/ DVI-I/ DVI-D/ LVDS via baseboard (IP409) |
| Caractéristique 6 | Supports HD audio via baseboard (IP409) |
E/S — Panneau arrière
Accès frontal
Où le ET950 est déployé
Space-constrained products needing a certified compute module rather than a full board.
Custom carrier boards built around a standardized, sourceable CPU module.
Low-power modules for diagnostic and portable instrument designs.
Compact compute modules for motion controllers and mobile robotics platforms.
