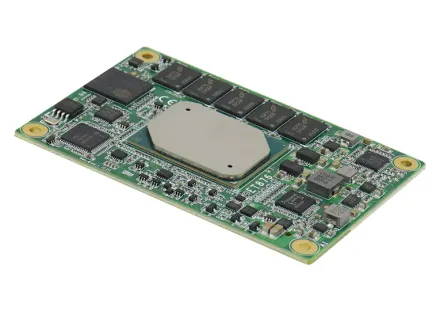

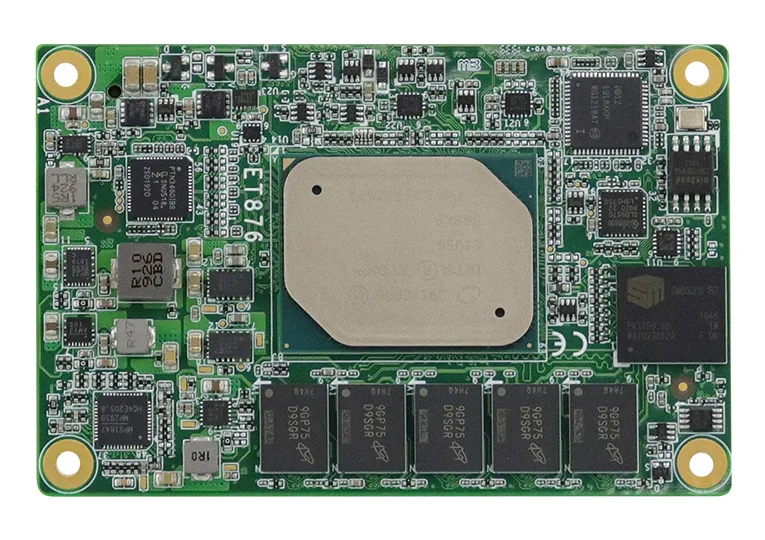

ET876

Name: ET876
Brand: IBASE Technology
SKU: ET876
Availability: InStock

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 Processor

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 Processor. Local warranty support and engineering customization available on request.

CPU

Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)

MEMORY

Onboard 4GB memory, DDR3L 1600MHz with ECC

STORAGE

eMMC 5.0 up to 32GB (option)

DISPLAY

1x DDI1x LVDS or 1x eDP (optional)

COM ExpressCPU Module

P/N # ET876

24 ROWS

CPU	Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)
PCH	Integrated in Intel® SoC
Memory	Onboard 4GB memory, DDR3L 1600MHz with ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0 up to 32GB (option)
Expansion Slots	4x PCI-E(x1)
Graphics Controller	Intel® SoC integrated Gen9-LP graphics
Video Output	1x DDI1x LVDS or 1x eDP (optional)
Ethernet	Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	F81804U-I
Serial Port	2x UART (Tx/Rx only))
USB 2.0	8x USB 2.0 via Carrier Board
USB 3.X	2x USB 3.0 via Carrier Board
Serial ATA	2x SATA III
Audio	Intel® Atom® SoC built-in HD audio controller
TPM	TPM (2.0)
Others	I2C
Dimensions (L x W)	84mm x 55mm (3.3" x 2.17")
Power Consumption	Intel® Atom® E3950 1.6GHz w/ 4GB LDDR3L 1600+12V: 1.42A
Operating Temperature	-40°C ~ 85°C (-40°F~185°F)
Storage Temperature	-40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity	90% (non-condensing @60°C)
