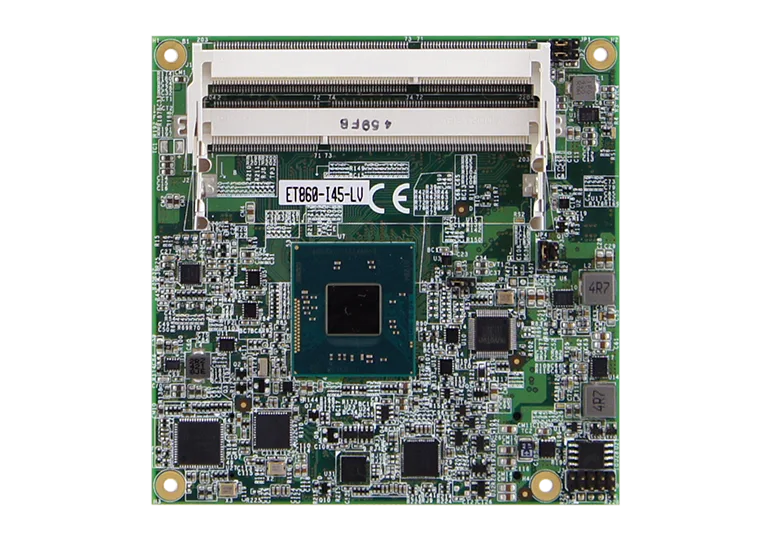

ET860

Name: ET860
Brand: IBASE Technology
SKU: ET860
Availability: InStock

Module CPU COM Express Type-6 — Intel® Atom® E3845/E3827 Processor

Module CPU COM Express Type-6 — Intel® Atom® E3845/E3827 Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® Processor E3845/E3827

MÉMOIRE

2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)

STOCKAGE

N/A

AFFICHAGE

24-bit single-channel LVDS on carrier board (IP411)

COM ExpressCPU Module

P/N # ET860

24 LIGNES

Processeur	Intel® Atom® Processor E3845/E3827
PCH	Integrated in Intel® Atom® SoC
Mémoire	2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)
BIOS	AMI
Minuterie de surveillance	256 levels
Surveillance matérielle	Yes
Interface de stockage	N/A
Emplacements d’extension	1x PCI-E(x1)
Contrôleur graphique	Intel® Atom® E3845/E3827 SoC integrated graphicsSupports CRT, DisplayPort & LVDS
Sortie vidéo	24-bit single-channel LVDS on carrier board (IP411)
Ethernet	1x Intel® I210IT Gigabit LAN
Chipset d’E/S	Nuvoton NCT5523D
Port série	2x COM ports (Tx/Rx only))
USB 2.0	8x USB 2.0 via carrier board (Supports 6x USB 2.0 only on IP411)
USB 3.X	1x USB 3.0 via carrier board (IP411)
Serial ATA	2x SATA III ports via carrier board (IP411)
Audio	Intel® Atom® E3845/E3827 SoC built-in audio with Realtek ALC662 or ALC888S codec on carrier board (IP411)
TPM	N/A
Autres	MicroSD slot on board @ rear sideDigital I/O (4-in / 4-out) on carrier board (IP411)
Dimensions (L x l)	95mm x 95mm (3.74" x 3.74")
Consommation électrique	Intel® Atom® E3845 1.91GHzw/ 2x 2GB DDR3L-1600+12V: 0.91A; +5V: 0.13A;+5VSB: 0.05A; +3.3V: 0.24A
Température de fonctionnement	-40°C~85°C (-40°F~185°F)
Température d’entreposage	-40°C~90°C (-40°F~194°F)
Humidité relative	90% (non-condensing @60°C)
