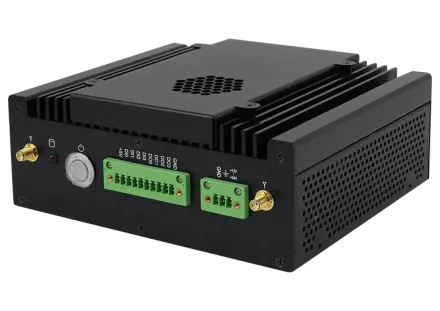

ASB210-966
Compact System with Intel® Core™ Ultra 300H Series Processor
Compact System with Intel® Core™ Ultra 300H Series Processor. Local warranty support and engineering customization available on request.
CPU
Intel® Core™ Ultra 7 356H Processor
MEMORY
2x DDR5-7200 cSO-DIMM, Max. 128GB
STORAGE
1x M.2 M-key 2280, 1x M.2 M-key 2242
OPERATING TEMP.
0°C~+50°C (32°F~122°F) [with airflow]
ASB Series Fanless SystemSBC System
P/N # ASB210-966
Specifications
19 ROWS
| System Mainboard | IB966AF-358H / IB966AF-356H / IB966AF-355 |
|---|---|
| CPU Type | Intel® Core™ Ultra 7 356H Processor |
| System Speed | Up to 4.8GHz |
| Memory | 2x DDR5-7200 cSO-DIMM, Max. 128GB |
| Front Panel External I/O | 2x USB 2.0 · 1x power button |
| Rear Panel External I/O | 2x 2.5G LAN · 2x USB 3.2 port · 1x USB 2.0 port · 1x Type-C (DP+USB) · 1x HDMI · 1x DisplayPort · 1x DB9 for COM (RS232/422/485) · 1x DC-input connector (+24V only) |
| Expansion Slots | 3x M.2 sockets (1x E-key and 2x M-key supports NVMe) |
| Storage | 1x M.2 M-key 2280, 1x M.2 M-key 2242 |
| Construction | SGCC |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included), optional VESA mount kit |
| Dimensions | 180mm(W) x 127mm(D) x 75.5mm(H) · 7.08"(W) x 5"(D) x 2.97"(H) |
| Weight | 1.6 kg |
| Operating Temperature | 0°C~+50°C (32°F~122°F) [with airflow] |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating: 20G / 11ms · Non-operating: 40G / 11ms |
| Certification | CE/LVD/FCC Class-B |
I/O — Rear panel
Front access
Where the ASB210-966 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
4 ROWS
| ASB210-966M-358H | - Barebone system with IB966AF-358H, onboard Intel® Core Ultra X7 358H CPU, 2x DDR5 SO-DIMM memory slot, desktop stand & mounting bracket, without Memory module / SSD/ Power adaptor Request a quote |
|---|---|
| ASB210-966M-356H | - Barebone system with IB966AF-356H, onboard Intel® Core Ultra 7 356H CPU, 2x DDR5 SO-DIMM memory slot, desktop stand & mounting bracket, without Memory module / SSD/ Power adaptor Request a quote |
| ASB210-966M-355 | - Barebone system with IB966AF-355, onboard Intel® Core Ultra 7 355 CPU, 2x DDR5 SO-DIMM memory slot, desktop stand & mounting bracket, without Memory module / SSD/ Power adaptor Request a quote |
| Optional 180W power adaptor | - 180W (24V@7.5A) power adaptor, compatible with IEC62368-1/EN62368-1 [PN: A005PS180W0100810P] Request a quote |
