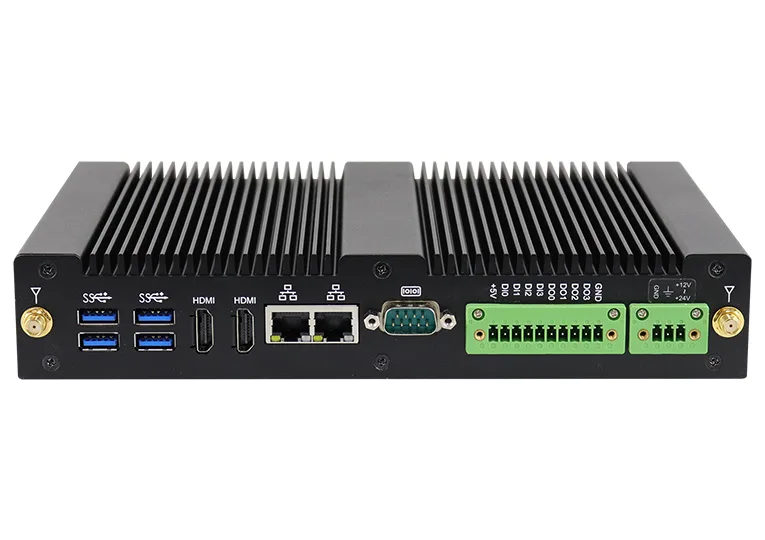

ASB200-918
Fanless System with AMD Embedded Ryzen™ Series Processor
Fanless System with AMD Embedded Ryzen™ Series Processor. Local warranty support and engineering customization available on request.
CPU
AMD Embedded Ryzen™ Series SoC V1605B/ V1202B/ R1606G/ R1505G /R2312 /R2314
MEMORY
2x 8GB DDR4-2666 SO-DIMM Max.32GB, supports ECC
STORAGE
1x 2.5" HDD or SSD
OPERATING TEMP.
0°C~45°C (32°F~113°F)
ASB Series Fanless System…SBC System
P/N # ASB200-918
Specifications
19 ROWS
| System Mainboard | IB918F-1605 /IB918F-1202 /IB918F-1606G / IB918F-1505G / IB918F-R2000 Series |
|---|---|
| CPU Type | AMD Embedded Ryzen™ Series SoC V1605B/ V1202B/ R1606G/ R1505G /R2312 /R2314 |
| System Speed | Up to 3.6GHz |
| Memory | 2x 8GB DDR4-2666 SO-DIMM Max.32GB, supports ECC |
| Front Panel External I/O | 1x Audio Jack for Line-out/ Line-in/ MIC-in 1x Power LED/ 1x HDD LED/ 1x RST button/ 1x On/Off button 1x USB 3.0/2.0 by V1605B/ V1202B/ R1606G/ R1505G 3x DB9 for COM#2~4 (RS232) |
| Rear Panel External I/O | 4 x USB 3.1 2x HDMI(2.0a) 1x DB9 for COM#1 (RS232/422/485) 2x LAN 1x Digital I/O (4-in/4-out)1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%) 2x Antenna holes |
| Expansion Slots | 2x M.2 (E-Key / M-Key) |
| Storage | 1x 2.5" HDD or SSD |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included) |
| Dimensions | 240mm (W) x 162mm (D) x 42mm (H) 9.44" (W) x 6.37" (D) x 1.65" (H) |
| Weight | 1.7kg |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating : 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class-B |

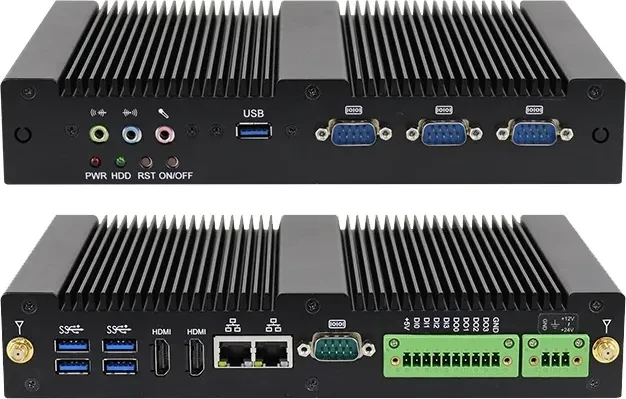

I/O — Rear panel
Front access
Where the ASB200-918 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
11 ROWS
| ASB200-918-1605 | - Fanless chassis with IB918F-1605, AMD Ryzen™ Embedded V1605B QC APU 2.0GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5'' SATAIII 64GB TLC SSD, w/o 90W power adaptor Request a quote |
|---|---|
| ASB200-918-1202 | - Fanless chassis with IB918F-1202, AMD Ryzen™ Embedded V1202B DC APU 2.3GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5'' SATAIII 64GB TLC SSD, w/o 90W power adaptor Request a quote |
| ASB200-918-1606G | - Fanless chassis with IB918F-1606G, AMD Ryzen™ Embedded R1606G DC APU 2.6GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5'' SATAIII 64GB TLC SSD, w/o 90W power adaptor Request a quote |
| ASB200-918-1505G | - Fanless chassis with IB918F-1505G, AMD Ryzen™ Embedded R1505G DC APU 2.4GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5'' SATAIII 64GB TLC SSD, w/o 90W power adaptor Request a quote |
| 90W power adaptor (optional) | - 90W (24V@3.75) power adaptor, DC-jack or bare wire type, Compatible with IEC62368-1/EN62368-1 Request a quote |
| ASB200-918-2314M | - (ASB), Chassis with IB918F-2314 AMD Ryzen embedded R2314 (2.1 GHz/3.5 GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
| ASB200-918-2312M | - (ASB), Chassis with IB918F-2312 AMD Ryzen embedded R2312 (2.7 GHz/3.5 GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
| ASB200-918-1605M | - (ASB), Chassis with IB918F-1605 AMD Ryzen embedded V1605B QC APU (2.0GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
| ASB200-918-1202M | - (ASB), Chassis with IB918F-1202 AMD Ryzen embedded V1202B DC APU (2.3GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
| ASB200-918-1606M | - (ASB), Chassis with IB918F-1606 AMD Ryzen embedded V1606G DC APU (2.6GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
| ASB200-918-1505M | - (ASB), Chassis with IB918F-1505 AMD Ryzen embedded V1505G DC APU (2.4GHz) onboard, 4 x COM, desktop stand & mounting brackets, w/o memory/ SSD/ 90W power adapter [Terminal Block type] (RoHS2) Request a quote |
