ASB110-PI900NEW
Palm-Sized System with Intel® Core™ Ultra 100U Processor
Palm-Sized System with Intel® Core™ Ultra 100U Processor. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | PICO-ITX PI900F |
|---|---|
| CPU Type | Intel® Core™ Ultra 100U Processor |
| System Speed | Up to 4.80GHz |
| Memory | 1x DDR5-5600 SO-DIMM, Max. 48GB |

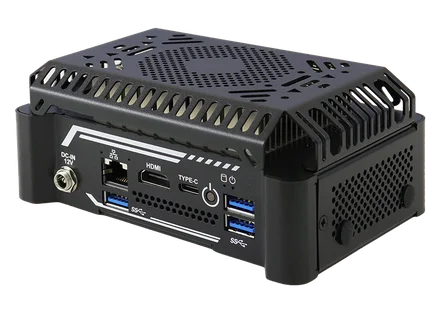

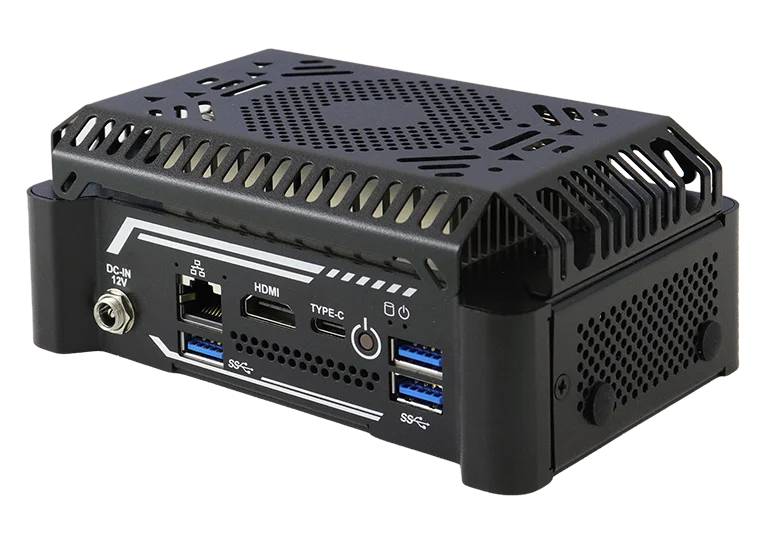

| Front Panel External I/O | 1x DC-jack1x 2.5G LAN1x HDMI1x USB Type-C1x Power button3x USB 3.2 ports |
| Rear Panel External I/O | N/A |

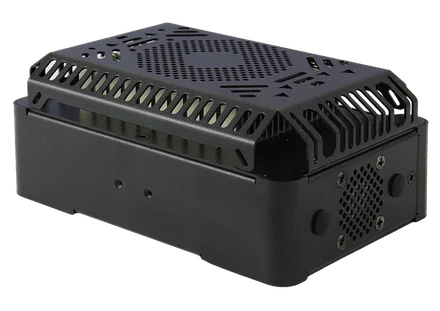

| Left Panel External I/O | 1x Antenna hole |
| Right Panel External I/O | 2x Antenna hole |
| Expansion Slots | 1x M.2 2230 (E-key) supports WiFi/ BT1x M.2 2280 (M-key) supports NVMe/SATA SSD |
| Storage | 1x M.2 M-key 2280 |
| Construction | SGCC |
| Chassis Color | Black |
| Mounting | Optional for Wall mount / DIN-rail /VESA mount(75 x 75) |
| Dimensions | 140mm (W) x 95mm (D) x 60mm (H)5.52” (W) x 3.74” (D) x 2.36” (H) |
| Weight | 1.2 kg |
| Operating Temperature | 0°C~55°C (32°F~131°F) *with airflow 0.9m/s |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 1Grms / 3~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class B |
I/O — Rear panel

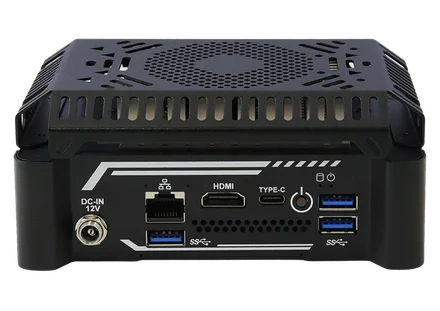

Front access
Where the ASB110-PI900 is deployed
Single 2.5GbE port and M.2 WiFi/BT slot support protocol translation and local data aggregation at the network edge.
HDMI and USB-C video output in a palm-sized chassis suit self-service terminals and compact signage players.
DIN-rail, wall, and VESA mounting let the system embed directly into control cabinets or behind displays.
140 x 95 x 60mm footprint fits where standard box PCs can't.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
| ASB110-PI900M-155 | - Palm-Sized box PC with PI900F-155U, Onboard Intel® Core™ Ultra 7 155U CPU, 3x USB 3.2, w/o memory/ SSD, Optional power adaptor Request a quote |
|---|---|
| ASB110-PI900M-125 | - Palm-Sized box PC with PI900F-125U, Onboard Intel® Core™ Ultra 5 125U CPU, 3x USB 3.2, w/o memory/ SSD, Optional power adaptor Request a quote |
| 120W power adaptor (optional) | - 120W (12V@10A) power adaptor, compatible with IEC62368-1/EN62368-1 Request a quote |
| Optional Accessories | - WiFi/BT antenna kit, DIN-rail bracket Request a quote |
