AMI232
Compact Expandable Fanless System with 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)
Compact Expandable Fanless System with 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MB230AF with Intel® Q370 PCH |
|---|---|
| CPU Type | 9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors |
| System Speed | Up to 4.0 GHz |
| Memory | 2x DDR4-2666/2400 SO-DIMM, Max. 32GB |
| Front Panel External I/O | 1x RS232/422/485 port for COM#1~COM#23x RS232 ports for COM#3~COM#42x RS232 ports for COM#5~6 from optional IP211/IP2121x DisplayPort (1.2)2x RJ45 Gigabit Ethernet port (supports 802.3at PoE+)1x 5-pin DC-in terminal block for 12V (±10%) or 18V (-10%)~24V (+10%)2x Antenna holes2x USB 2.0 from optional IP211/IP212/IP2132x Expansion slot |
| Rear Panel External I/O | 1x DVI-D + HDMI(1.4)4x USB3.1 ports2x Antenna holes2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports1x Red HDD LED1x power button with Green LED indicator1x 2-pin terminal block2x SIM card |
| Expansion Slots | 2x Flexible PCI-E / PCI expansion slot1x M.2 (B-key supports USB 2.0 for 4G/LTE)1x M.2 (E-key supports PCI-E + USB 2.0 for CNVi)1x M.2 (M-key supports PCI-E(4x) + SATA for NVMe SSD) |
| Storage | 2x 2.5'' HDD/SSD1x M.2 (M-Key supports PCI-E(4x) + SATA for NVMe SSD) |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | Desktop & wall mount |
| Dimensions | 210mm(W) x 285mm(D) x 129mm(H) 8.27" (W) x 11.22" (D) x 5.08" (H) |
| Weight | 4.9 kg |
| Operating Temperature | -20°C ~ 70°C (-4°F~158°F) (for 35W CPU) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating: 20G / 11ms Non-operating: 40G / 11ms |
| Certification | CE/ FCC Class A/ LVD |

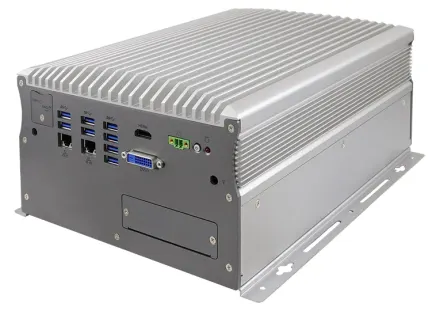

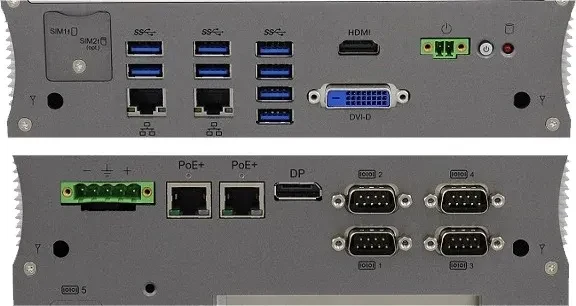

I/O — Rear panel

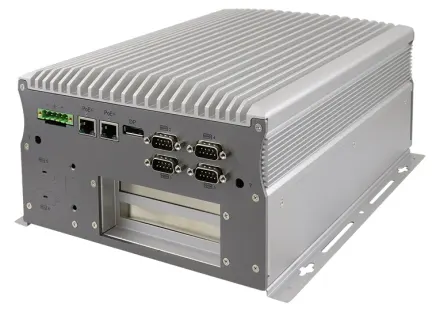

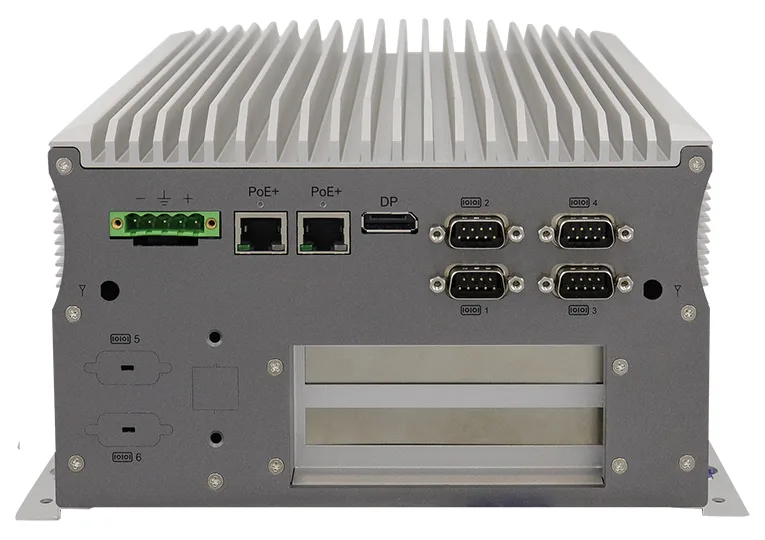

Front access
Where the AMI232 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
| AMI232AF (Supports SIERRA module) | - Fanless box System with MB230AF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 6x COM (from IP211/IP212) 4x COM (from IP213), 1x 8GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor, optional riser card Request a quote |
|---|---|
| AMI232AF-P | - Fanless box System with MB230AF-P, w/ Intel® Core™ i7/i5/i3 desktop Processor, 6x COM (from IP211/IP212) 4x COM (from IP213), 1x 8GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor, optional riser card Request a quote |
| 330W Power Adaptor Kit (optional) | - 330W (24V(±10%)@13.75A) power adaptor Kit. Compatible with IEC62368-1/EN62368-1 Request a quote |
| Riser card kit (optional) | - IP211 (ZM05IP211---0B1000R) w/ COM cable (2x C501PK1H009302A00P); IP212 (ZM05IP212---0A1000R) w/ COM cable (2x C501PK1H009302A00P); IP213 (ZM05IP213---0A1000R) w/o COM cable Request a quote |
| Optional Accessories | - Global 4G antenna kit for Sierra Wireless EM7565 module, M.2 (M-KEY 2280) Thermal kit Request a quote |
