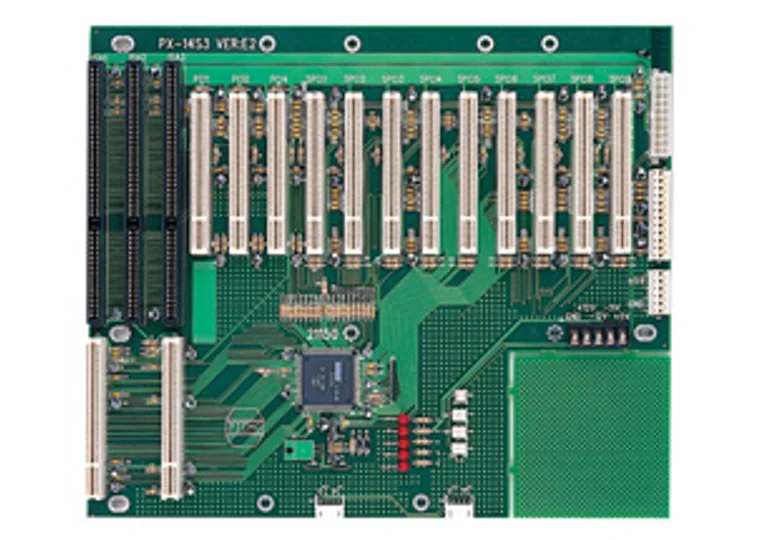

PX-14S3
14-slot active backplane — 12x PCI, 2x ISA, 2x PICMG 1.0
14-slot active backplane — 12x PCI, 2x ISA, 2x PICMG 1.0. Local warranty support and engineering customization available on request.
SLOTS
14 total — 12x PCI, 2x ISA, 2x PICMG 1.0
BUS
PICMG 1.0 Active
PICMG BackplaneActive Backplane
P/N # PX-14S3
Specifications
2 ROWS
| Bus Type | PICMG 1.0 Active |
|---|---|
| Slot Configuration | 14 total — 12x PCI, 2x ISA, 2x PICMG 1.0 |
I/O — Rear panel
Front access
Where the PX-14S3 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
