IPB13A4

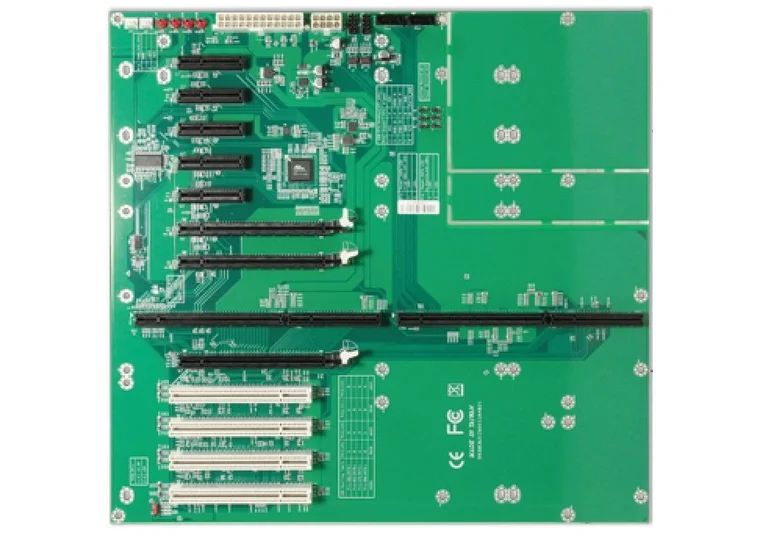

13-slot passive backplane — 4x PCI, 1x PCIe (x16), 2x PCIe (x16, x1 signal)
13-slot passive backplane — 4x PCI, 1x PCIe (x16), 2x PCIe (x16, x1 signal). Local warranty support and engineering customization available on request.
SLOTS
13 total — 4x PCI, 1x PCIe (x16), 2x PCIe (x16, x1 signal)
BUS
PICMG/PCIe/PCI Passive
PICMG BackplanePassive Backplane
Specifications
2 ROWS
| Bus Type | PICMG/PCIe/PCI Passive |
|---|---|
| Slot Configuration | 13 total — 4x PCI, 1x PCIe (x16), 2x PCIe (x16, x1 signal) |
I/O — Rear panel
Front access
Where the IPB13A4 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
