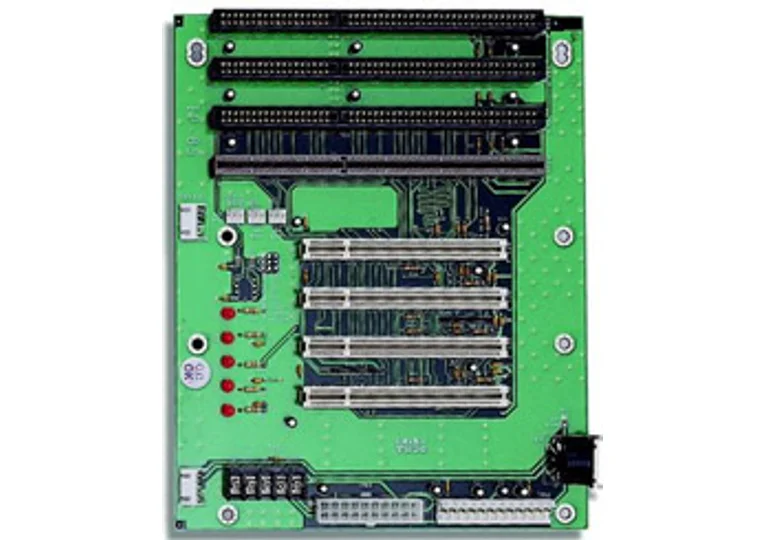

IP-8S
8-slot passive backplane — 1x PISA, 4x PCI, 3x ISA
8-slot passive backplane — 1x PISA, 4x PCI, 3x ISA. Local warranty support and engineering customization available on request.
SLOTS
8 total — 1x PISA, 4x PCI, 3x ISA
BUS
PCISA Passive
PICMG BackplanePassive Backplane
P/N # IP-8S
Specifications
2 ROWS
| Bus Type | PCISA Passive |
|---|---|
| Slot Configuration | 8 total — 1x PISA, 4x PCI, 3x ISA |
I/O — Rear panel
Front access
Where the IP-8S is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
