PICMG CPU CARDS & BACKPLANES / IN STOCK

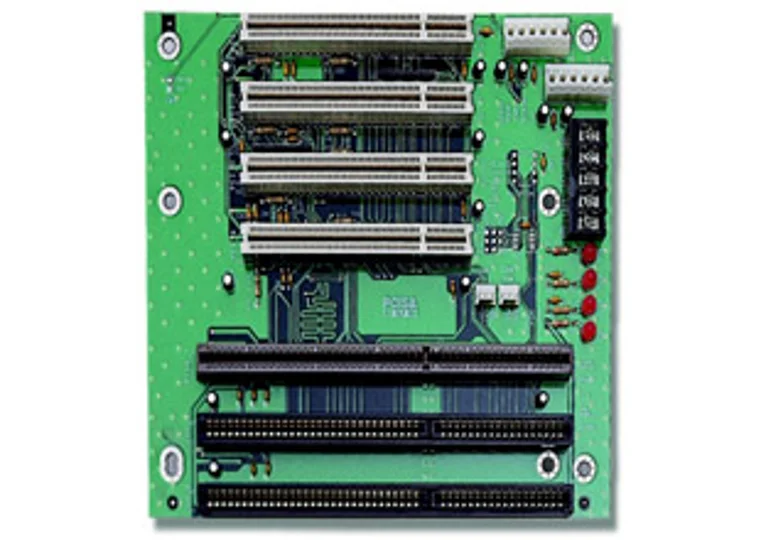

IP-7S
7-slot passive backplane — 1x PISA, 4x PCI, 2x ISA
7-slot passive backplane — 1x PISA, 4x PCI, 2x ISA. Local warranty support and engineering customization available on request.
SLOTS
7 total — 1x PISA, 4x PCI, 2x ISA
BUS
PCISA Passive
PICMG BackplanePassive Backplane
P/N # IP-7S
Specifications
2 ROWS
| Bus Type | PCISA Passive |
|---|---|
| Slot Configuration | 7 total — 1x PISA, 4x PCI, 2x ISA |
I/O — Rear panel
Front access
Where the IP-7S is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →IP-7S datasheetAvailable on request
- REQUEST →IP-7S user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
