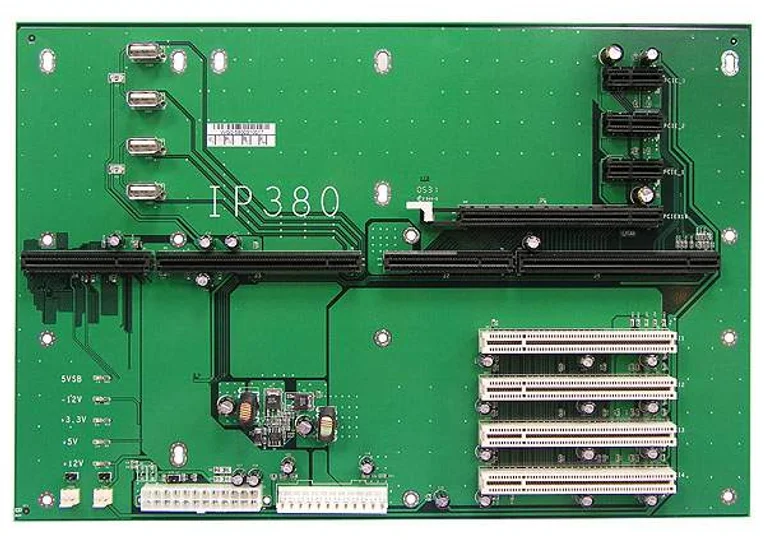

IP380
8-slot passive backplane — 1x PCIe (x16), 3x PCIe (x1), 4x PCI
8-slot passive backplane — 1x PCIe (x16), 3x PCIe (x1), 4x PCI. Local warranty support and engineering customization available on request.
SLOTS
8 total — 1x PCIe (x16), 3x PCIe (x1), 4x PCI
BUS
PICMG 1.3 Passive
PICMG BackplanePassive Backplane
P/N # IP380
Manual Specifications
2 ROWS
| Bus Type | PICMG 1.3 Passive |
|---|---|
| Slot Configuration | 8 total — 1x PCIe (x16), 3x PCIe (x1), 4x PCI |
I/O — Rear panel
Front access
Where the IP380 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓IP380 user manualPDF document
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
