IP314

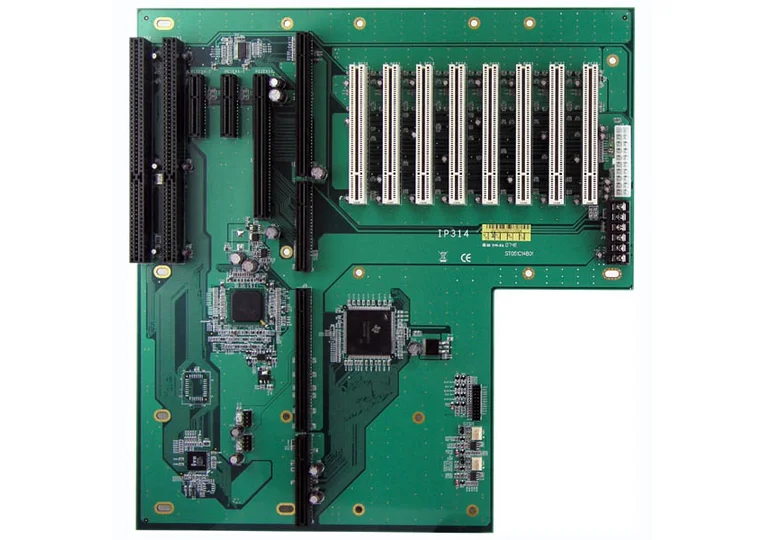

14-slot passive backplane — 1x PCIe (x16), 2x PCIe (x4), 8x PCI
14-slot passive backplane — 1x PCIe (x16), 2x PCIe (x4), 8x PCI. Local warranty support and engineering customization available on request.
SLOTS
14 total — 1x PCIe (x16), 2x PCIe (x4), 8x PCI
BUS
PICMG 1.3 Passive
PICMG BackplanePassive Backplane
P/N # IP314
Manual Specifications
2 ROWS
| Bus Type | PICMG 1.3 Passive |
|---|---|
| Slot Configuration | 14 total — 1x PCIe (x16), 2x PCIe (x4), 8x PCI |
I/O — Rear panel
Front access
Where the IP314 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
