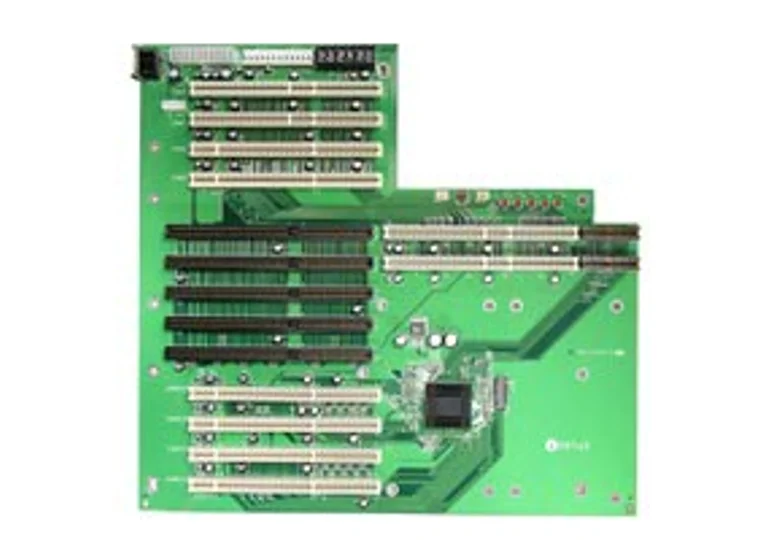

IP180
13-slot passive backplane — 4x PCI (64-bit/33MHz) or 2x PICMG 1.0 (configurable)
13-slot passive backplane — 4x PCI (64-bit/33MHz) or 2x PICMG 1.0 (configurable). Local warranty support and engineering customization available on request.
SLOTS
13 total — 4x PCI (64-bit/33MHz) or 2x PICMG 1.0 (configurable)
BUS
PICMG/PCI Passive
PICMG BackplanePassive Backplane
P/N # IP180
Specifications
2 ROWS
| Bus Type | PICMG/PCI Passive |
|---|---|
| Slot Configuration | 13 total — 4x PCI (64-bit/33MHz) or 2x PICMG 1.0 (configurable) |
I/O — Rear panel
Front access
Where the IP180 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →IP180 datasheetAvailable on request
- REQUEST →IP180 user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
