IP-10S

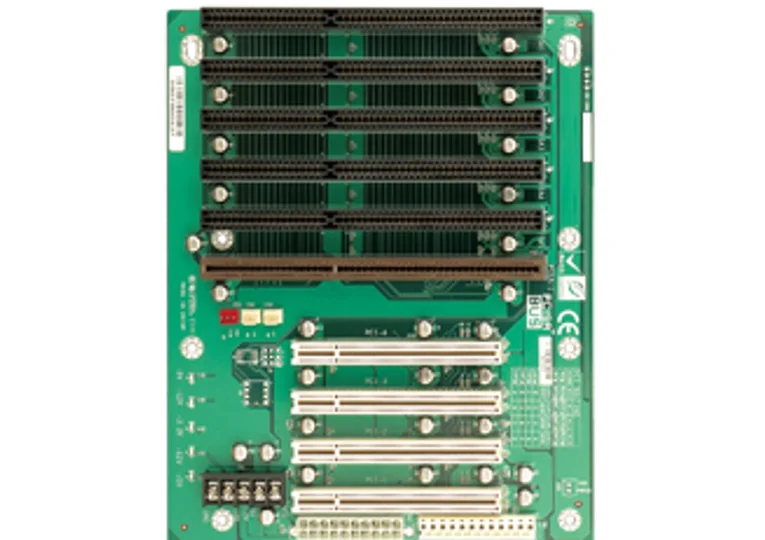

10-slot passive backplane — 1x PISA, 4x PCI, 5x ISA
10-slot passive backplane — 1x PISA, 4x PCI, 5x ISA. Local warranty support and engineering customization available on request.
SLOTS
10 total — 1x PISA, 4x PCI, 5x ISA
BUS
PCISA Passive
PICMG BackplanePassive Backplane
P/N # IP-10S
Diagram Specifications
5 ROWS
| Bus Type | PCISA Passive |
|---|---|
| Slot Configuration | 10 total — 1x PISA, 4x PCI, 5x ISA |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Power Requirement | ATX, 4-pin AT connector |
I/O — Rear panel
Front access
Where the IP-10S is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
