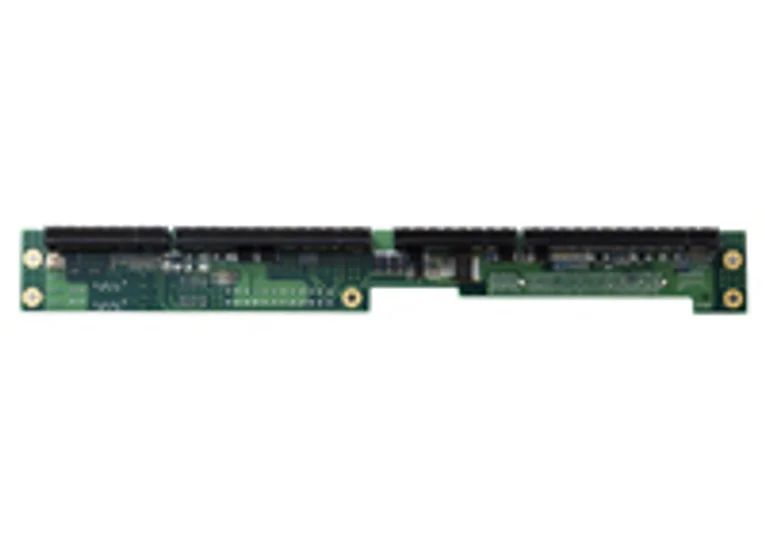

BP1U3102
2-slot passive backplane — 1x PCI (32-bit), 1x PICMG 1.3
2-slot passive backplane — 1x PCI (32-bit), 1x PICMG 1.3. Local warranty support and engineering customization available on request.
SLOTS
2 total — 1x PCI (32-bit), 1x PICMG 1.3
BUS
PICMG 1.3 (PCIe/PCI Bus) Passive
PICMG BackplanePassive Backplane
P/N # BP1U3102
Specifications
2 ROWS
| Bus Type | PICMG 1.3 (PCIe/PCI Bus) Passive |
|---|---|
| Slot Configuration | 2 total — 1x PCI (32-bit), 1x PICMG 1.3 |
I/O — Rear panel
Front access
Where the BP1U3102 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
