GHB-061

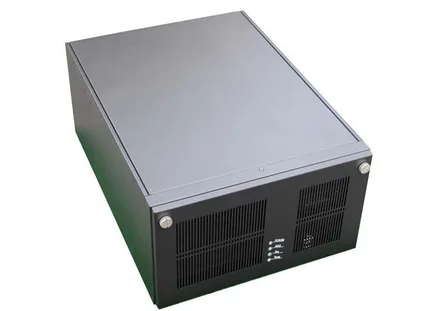

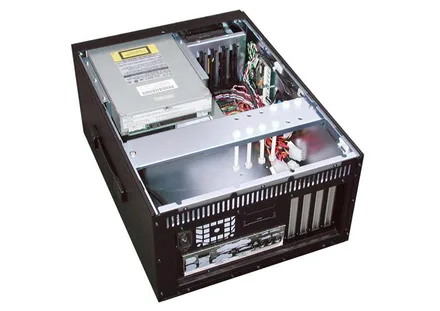

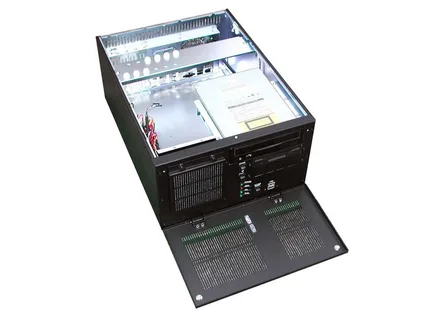

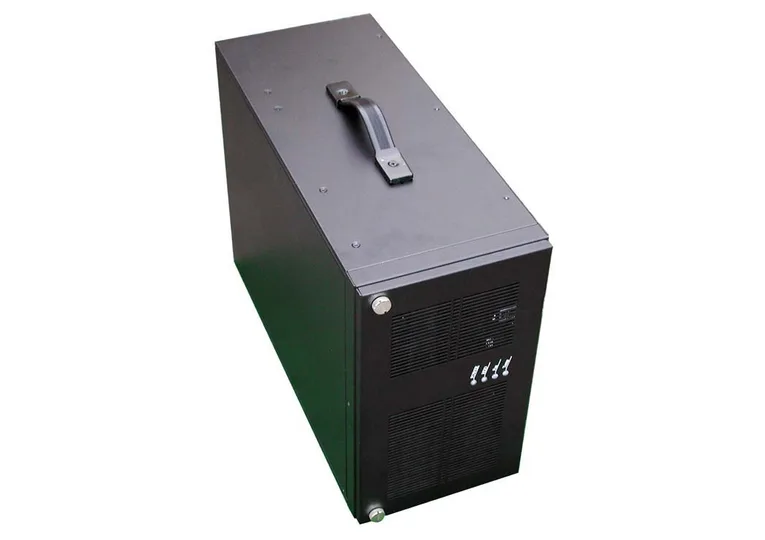

GHB-061 - Rack Mount / Wall Mount 6-Slot Micro Box Chassis
GHB-061 - Rack Mount / Wall Mount 6-Slot Micro Box Chassis for Flex-ATX and Micro-ATX motherboards. Local warranty support and engineering customization available on request.
Specifications
| Mounting | Desktop, rack mount or wall mount |
|---|---|
| Construction | Heavy duty cold rolled electroplated steel |
| Color | Black (standard), beige or custom |
| System Board | Flex-ATX and Micro-ATX motherboard |
| Drive Bay | 1x 5.25" & 1x 3.5" & 1x 3.5" HDD (hidden) |
| Power Supply | 1U single 250~300W ATX P/S (optional, mid-installation) |
| Cooling | 1x 90mm fan (51 CFM) |
| Front Door | Single door with 2 thumbscrews, portable handle, washable air filter |
| Connector Port (Front) | 2x USB ports |
| Thermal Management Card | GHA-CO04 |
| Indicators | LEDs for Power ON/OFF, HDD Activity, Fan, Temperature |
| Switches | Power ON/OFF, System Reset, Buzzer Reset |
| Dimensions | 307 x 177 x 421mm (12" x 7" x 16.6") |
| Weight | 12kg / 26.5 lbs (gross) |
| Humidity | 5% ~ 95%, non-condensing |
I/O — Rear panel
Front access
Where the GHB-061 is deployed
Add connectivity and storage capability to existing industrial and third-party boards.
Extend the useful life of fielded systems with a drop-in accessory card.
Building-block components for OEM BTO assembly and custom system integration.
Stocked accessory parts for maintenance and repair of deployed systems.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓GHB-061 datasheetPDF document
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESS
