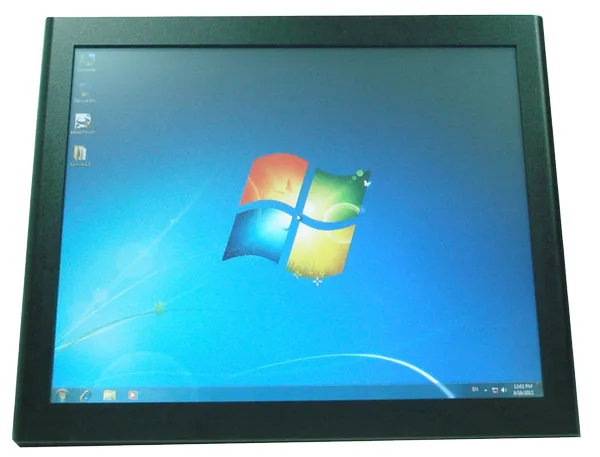

PPC1901

Name: PPC1901
Brand: IBASE Technology
SKU: PPC1901
Availability: InStock

Slim PanelPC 19 Inch 4xCOM, IP64, SXGA

Slim PanelPC 19 Inch 4xCOM, IP64, SXGA. Local warranty support and engineering customization available on request.

CPU

Intel® Atom™ N270, 1.6GHz /512K cache CPU

MEMORY

1x DDR2 Long‐DIMM, 2GB DDR2(default) , Non‐ECC · Unbuffered

STORAGE

2.5 HDD/SSDSATA/IDEDOM(DiskOnModule)

DISPLAY

19 inch( 5:4 ) SXGA Screen industrial grade TFT LCD

REQUEST QUOTE REQUEST DATASHEET

P/N # PPC1901

Introduction to Watchdog Timer

Specifications

46 ROWS

DISPLAY	19 inch( 5:4 ) SXGA Screen industrial grade TFT LCD
Resolution	SXGA 1280 x 1024
Contrast Ratio	1000:1
Brightness	250 nits adjustable through BIOS set up · LCD l 16 7M(t l)
LCD color	16.7M( true color)
View angle	85/85(H), 80/80(V)
Backlight	CCFL
Touch	5 wires resistive touch or SAW touch
Touch interface	USB
MTBF	50,000 Hours
CPU	Intel® Atom™ N270, 1.6GHz /512K cache CPU
Chipset	Intel® 945GSE + ICH7M Express Chip set
BIOS	Award BIOS, ACPI supported
Memory	1x DDR2 Long‐DIMM, 2GB DDR2(default) , Non‐ECC · Unbuffered
Integrated VGA	Intel® Graphics Media Accelerator GMA950 · 1x VGA for the 2nd VGA port
Storage	2.5 HDD/SSDSATA/IDEDOM(DiskOnModule)
Storage	2.5 HDD/SSD, SATA /IDE DOM ( Disk On Module ),
Serial ATA	supported by 2x SATA II ports, Slim DVD writer ( · suck‐in type ) available (optional)
Wireless Lan	high speed 802.11 a/b/g/n 2T2R wireless /Blue tooth module (optional) · via Mini PCI‐e card (optional) · RFID reader (optional)
Camera	Built‐in 2.0M pixels webcam with the automatic image control · function of AF, AE and AWB and microphone(optional) · ,
Expansion	1x PCI , 1x Mini PCI‐E
Watchdog Timer	Generates system reset; 256 levels
Hardware Monitoring	Built in W83627EHG; monitors · system/CPU temperature and voltage status
Support OS	Win XP pro; Win XP Embedded; Win 7 Pro(32/64 · bits ); Win 7 Embedded ( 32/64 bits )
USB	Supports 8 x USB (2.0) ports ( 6 ports in the rear I/O + 2 ports · internal via pin header)
Paralell	LPT , 1x DB25 printer port
LAN	2 RJ45Gi bitL
LAN	2x RJ‐45 Giga bit Lans · 2x PS/2 ports for Keyboard and Mouse , 4x COM ports
Audio	Mic, Line‐in, Line‐out · DC power jack for +12V DC‐in · Internal I/O interface
LVDS	Supports 24/18‐bit dual channel LVDS, LVDS interface via 2 · x DF40 connectors
LAN	Rltk®Gi L hi RTL8111C10/100/1000Mbit 2
LAN	Realtek® Giga Lan chip RTL8111C 10/100/1000 Mbits x 2
Digital I/O	4 Input /4 output
Audio	6‐Channel ( 5.1 ) Realtek ALC655 Codec ( with multi‐ · streaming ) , Internal S/PDIF header and front panel audio header
Audio Amp	Dual channel , 3 watts per channel
Housing	Metal Front Bezel , Metal housing
Mounting	Panel Mount , VESA mounting supportd (75 x 75 · and100 x 100mm ).
IP protection	IP64 in the front bezel
Power adapter	84 watts ( output: 12VDC (default), Wide range
9~36 VDC ( Optional ) , input	90~240 VAC )
Operating temperature	‐20°C~+60°C (‐68°F~+140°F)
Storage temperature	‐30°C~+80°C (‐86°F~+176°F)
Relative Humidity	10%~90% (non‐condensing)
Dimension	364 mm (H) x 436 mm (W) x 76 mm (D) ( without · table stand installed )
Weight	8.0 kg · .CE approval and FCC Class A
Tilt angle	0° ~ 90°

Features

8 ROWS

Feature 1	19 inch ( 5:4 ) screen Industrial grade TFT 1280 x 1024 LCD
Feature 2	5 wires resistive touch or SAW touch
Feature 3	Intel® Atom™ N270, 1.6GHz /512K cache CPU
Feature 4	Support up to 2GB DDR2 Long‐DIMM RAM
Feature 5	4x COM, Support up to 8x USB 2.0 ( 6 x ports in the rear I/O + 2 x
Feature 6	ports via internal pin header), 1x VGA, 1x LPT printer,2x Gb LANs p p p
Feature 7	Full Metal housing
Feature 8	IP64 compliant front

Ordering Information

8 ROWS

PPC-1901R	- Intel® Atom N270 , 1.6GHZ CPU, Intel® 945GSE + ICH7M Express Chip set , 2GB DDR2 RAM,2x RJ-45 Gb Lan, 8 x USB (2.0) ports ( 6x external + 2x internal), 1x VGA for 2nd VGA port, LPT printer port, 4x COM ports , 2.5” 320GB HDD, Mic, Line‐out, Line‐out, DC power jack for +12V DC‐in, 1x PCI , 1x Mini PCI‐E,19" ( 5:4 ) Screen industrial grade TFT LCD, SXGA 1280 x 1024 resolution, 5 wires resistive touch, Metal Front Bezel , Metal housing,Panel Mount , VESA mounting supportd (75 x 75 and100 x 100mm ), IP64 in the front bezel, 84W Power adapter
PPC-1901S	- Intel® Atom N270 , 1.6GHZ CPU, Intel® 945GSE + ICH7M Express Chip set, 2GB DDR2 RAM,2x RJ-45 Gb Lan, 8x USB (2.0) ports ( 6x external + 2x internal), 1x VGA for 2nd VGA port, LPT printer port, 4x COM ports, 2.5” 320GB HDD, Mic, Line‐out, Line‐out, DC power jack for +12V DC‐in, 1x PCI Mini PCI‐E,19" ( 5:4 ) Screen industrial grade TFT LCD, SXGA 1280 x 1024 resolution, SAW touch, Metal Front Bezel , Metal housing, Panel Mount, VESA mounting supported (75 x 75 and100 x 100mm ), IP64 in the front bezel , 84W Power adapter
DCPSU	- Wide range power supply 9~36 VDC
DVD it ( k i t )	- Slim DVD RW
DV-W28SS	- DVD Writer DVDwriter (suck in type )
Advanced-N 6235	- Wi-Fi 802.11 a/b/g/n 2T2R high speed wireless wireless Lan Wi-Fi
RFID reader	- RFID reader
Camera	- Built-in 2.0M pixels webcam withAF, AE and AWB capabilities and Microphone
