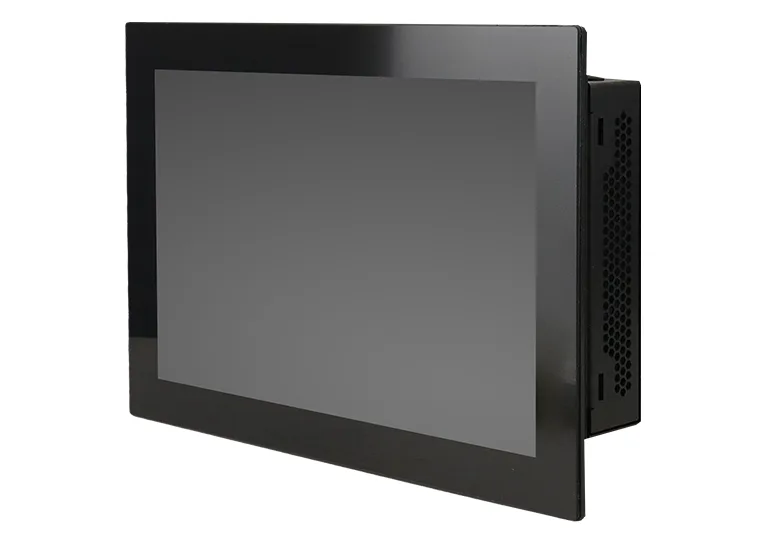

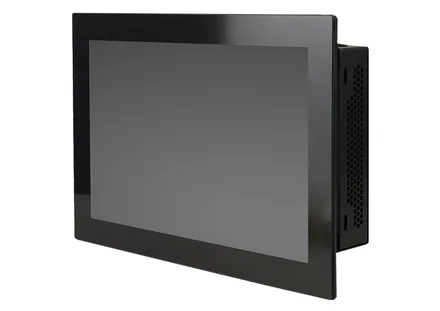

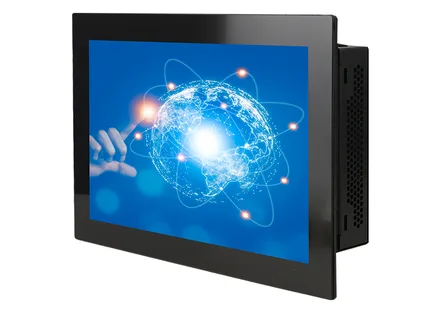

IHPC-W101
Sunlight-Readable 10.1" Fanless HMI Panel PC with Intel® Atom® N150 / Core™ 3 N355 Processor
IHPC-W101 Industrial HMI Panel PC with Intel® Atom® N150 / Core™ 3 N355 Processor (formerly Twin Lake), IP65 front panel, 500 or 1,000 nits sunlight-readable display. Local warranty support and engineering customization available on request.
Specifications
| Display Size | 10.1" (16:10) |
|---|---|
| Max. Resolution | 1280 x 800 (500nits) · 1920 x 1200 (1,000nits) |
| Luminance (cd/m2) | 500 or 1,000 |
| Contrast | 800:1 (500nits) · 1000:1 (1000nits) |
| Max. Color | 16.7M |
| View Angle (H/V) | 178° / 178° |
| Backlight Lifetime (hrs) | 50,000 |
| Touch Type | Projected Capacitive touch |
| Touch Interface | USB |
| Light Transmission (%) | 85±2.5% |
| Point of Touch | Up to 10 |
| Processor | Intel® Atom® N150 Processor (Quad-Core @ 3.6GHz) · Intel® Core™ 3 N355 Processor (Eight-Core @ 3.64GHz) |
| Memory | 1x DDR5 SO-DIMM, up to 16GB |
| USB | 2x USB 3.2 Gen1 · 2x USB 2.0 |
| Serial Port | COM1 selectable RS-232/422/485 (BIOS) · COM2 RS-232 |
| LAN | 2x 2.5GbE |
| Additional Graphics | 2x DP |
| Audio | 1x Earphone · 1x Microphone |
| Digital I/O | 4x DI, 4x DO |
| Power Connector | DC-Jack with screw lock |
| Power Button | Tact Switch |
| Thermal Design | Fanless |
| Internal Expansion Bus | 1x M.2 2280 (M-Key) SATA · 1x M.2 2230 (E-Key) · 1x M.2 3052 (B-Key) |
| Wireless | Optional Wi-Fi/BT/4G/5G/LTE |
| Storage | SSD: 1x M.2 2280 (M-Key) SATA |
| Chassis Material | Aluminum and SGCC |
| Color (Front/Back) | Gray / Gray |
| IP Rating | IP65 front-panel waterproof |
| Mounting | VESA 100x100 mm, Panel Mount |
| Dimensions (mm) | 260 x 179 x 48 |
| Net Weight (kgs) | 1.75 |
| Operating Temperature | Panel 500nits/N150: -20°C~60°C (-4°F~140°F) · Panel 1000nits/N150: -10°C~50°C (14°F~122°F) · N355 CPU: -10°C~40°C (14°F~104°F) *with airflow |
| Storage Temperature | -30~80°C |
| Storage Humidity | 5%~90% @ 50°C (non-condensing) |
| Certification | CE/FCC Class-B |
| Supported Operating Systems | Microsoft Windows 11, Linux Kernel 4+ |
Ordering Information
| IHPC-W101-N150-1M | - 10.1" 1280x800 500nits Industrial HMI, Intel® Atom® N150 Processor, w/o RAM, SSD, power adaptor and OS, Operating Temperature -20°C~60°C (DC-IN 12~24V) |
|---|---|
| IHPC-W101-N150-2M | - 10.1" 1920x1200 1000nits Industrial HMI, Intel® Atom® N150 Processor, w/o RAM, SSD, power adaptor and OS, Operating Temperature -20°C~50°C (DC-IN 12~24V) |
| IHPC-W101-N355-1M | - 10.1" 1280x800 500nits Industrial HMI, Intel® Core™ 3 N355 Processor, w/o RAM, SSD, power adaptor and OS, Operating Temperature -10°C~40°C (DC-IN 12~24V) |
| IHPC-W101-N355-2M | - 10.1" 1920x1200 1000nits Industrial HMI, Intel® Core™ 3 N355 Processor, w/o RAM, SSD, power adaptor and OS, Operating Temperature -10°C~40°C (DC-IN 12~24V) |

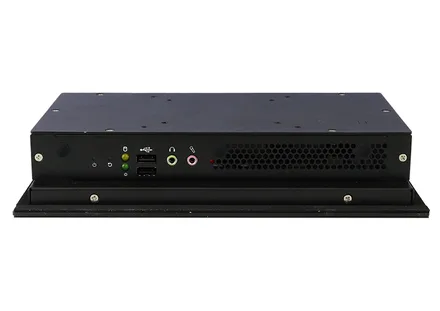

I/O — Rear panel

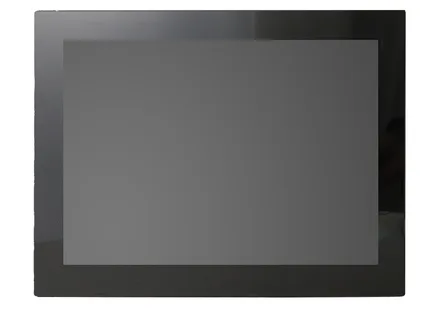

Front access
Where the IHPC-W101 is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
